Suction Blasting Series

SS Series Suction System Dry Blasting Cabinets

SM20b Suction System Dry Blasting Equipment

SM20B shown with 100 CFM dust collector and work stand

Suction system dry blasting cabinet systems work by using a high-pressure air line and an abrasive feeder line that both connect to a nozzle or gun type device. Air and abrasive particles are mixed at a ratio of 2 parts air to 1 part abrasive. Media is recycled from the gun system to the hopper and back to the gun system.

Dry Blasting Applications

The applications for a suction system dry blasting cabinet are virtually limitless, including cleaning, deburring, decorating, deflashing, etching, finishing, honing and peening. All of these uses and more can be accomplished easily with quick sweeps of the suction blasting cabinet's gun nozzle. Scale, corrosion, old paint and other surface materials are removed in minutes, leaving metal surfaces free of foreign matter and contamination. Even tough mill scale is quickly and efficiently removed.

Questions? Contact Us

Operating Pressure & Optimal Abrasives



The usual operating pressure for Kramer Suction System Dry Blasters is 85 PSI. These siphon blasting cabinet systems utilize a variety of abrasives such as

A multitude of finishes are possible, ranging from a micro-finish to a coarse-grade finish, depending upon the specific media used.

The standard cabinets have door openings on the side as well as a large opening in the front. The split-level style is hinged in the center; the entire top half opens to give access to the work stage, somewhat like a clamshell. This has an advantage when handling large heavy parts.

Model Features & Specs



Suction Dry Blasting System Features & Parts

Cabinet

Tapered media hopper with bottom.

Trap door for easy disposal of spent media.

Top & side loading doors on most models.

14-gauge welded steel construction.

8" armholes on all models 40" x 40" and larger.

MM models have a double floor - 1/8" steel plus carbon screen.

Window

Easy change window frame.

Safety glass windows for excellent visibility and increased efficiency.

Lighting

SM models have incandescent lighting.

MM models have fluorescent interior lighting to eliminate shadows and minimize energy consumption.

Gloves

Heavyweight rubber gloves (neoprene gloves optional) built into front of cabinet.

Gun System

Tungsten carbide nozzle.

Model SM20B: 1/4" ID nozzle and 1/8" air jet gun (12 CFM).

Models SM24C and SM30C: 5/16" ID nozzle and 1/8" air jet gun (12 CFM).

All MM Models: 5/16" ID nozzle and 5/32" air jet gun (25 CFM).

Safety enclosed foot valve blasting control.

Dust Collector

All models except SM20B include a BP Dust Collector that vacuums dust and contamination from the cabinet.

SM20B includes a 100 CFM dust collector.

BP Dust Collector measures 571/2" high and 14" in diameter.

Separates broken-down abrasives.

Self-cleaning bag.

Air Pressure Gauge

Included with all MM models; optional with all SM models.

Electrical

115V, 1 phase, 60 cycle motor

Optional Accessories

Abrasive Separators available in 300, 450 and 600 CFM. Retrofit packages also available. Refer to abrasive separator specifications for more information.

Upgraded Dust Collectors available models include Deluxe, 400PT and 800PT. Refer to dust collector specifications for more information.

Work Stand (24" high with swing-up shelf and slide out tray) available for model SM20B. view photo »

Air Pressure Regulator and Gauge available on all SM models (included with MM models).

Water Filter available on all models.

Blow Off Gun available on all models.

Auto Power Basket available on all models; retrofit package also available; 8" x 8", 8" x 12", or 12" x 12", available with or without timer. view photo »

Air Cylinder For power-assisted opening and closing of larger split-level models. view photo »

Spare Parts Package available for all models.

Turntable, manual 300 lb capacity (cabinet floor must be reinforced if loads of 1000 lb or more are anticipated). Available in 18", 26" and 36" diameter. view photo »

Deluxe Packages

Deluxe packages are available on MM3624C and larger models and include:

Abrasive Separator
Enclosed Dust Collector
16 Tubular Filter Bags
Water Filter
Air Vibrator
Blow Off Gun

450 CFM Abrasive Separator on SM3624C, MM4824C, MM4224S and MM4824S

600 CFM Abrasive Separator on MM4040S, MM4836C, MM6024S, MM4848S, MM6048S, MM7248S and MM9648S


click on highlighted model number to view picture

Suction Series Cabinet Model Specifications

Model

Style

Dimensions


(width x height x depth)

Doors

Windows

Features

bench Inside:
20" x 18" x 18"
Overall:
21" x 381/2" x 33"
one 20" x 13" front-opening lid one
18" x 10"
Ideal for cleaning small parts.
100 CFM Dust Collector included.

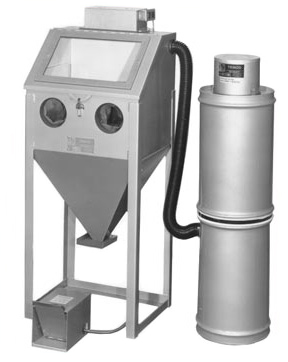

cabinet Inside:
24" x 23" x 18"
Overall:
26" x 62" x 18"
one 24" x 15" front-opening lid one
191/2" x 12"
Carbon screen work floor.
BP Dust Collector included.

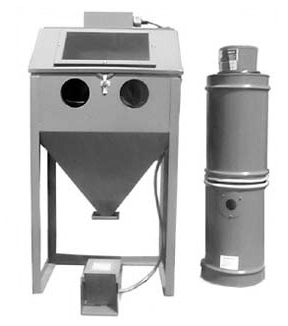

cabinet Inside:
30" x 23" x 20"
Overall:
32" x 62" x 20"
one 30" x 13" front-opening lid one
191/2" x 12"
Carbon screen work floor.
BP Dust Collector included.

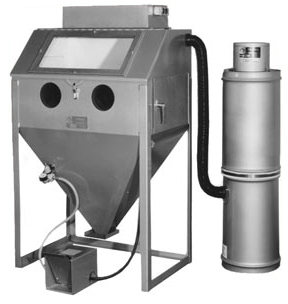

cabinet Inside:
36" x 23" x 24"
Overall:
38" x 64" x 25"
one 36" x 13" front-opening lid and one 17" x 11" side door one
12" x 24"
Standard with BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator optional. MM3630C also available.
split-level cabinet Inside:
40" x 31" x 40"
Overall:
45" x 71" x 66" closed / 71" open
one 40" x 40" flip-top lid and one 20" x 30" side door one
12" x 24"
Standard with BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator optional. Includes Neoprene gloves.
split-level cabinet Inside:
42" x 24" x 24"
Overall:
70" x 65" x 38" closed / 50" open
one 42" x 24" flip-top lid and one 11" x 11" side door one
12" x 24"
Standard with BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator optional. MM4230S also available.
cabinet Inside:
48" x 23" x 24"
Overall:
52" x 64" x 25"
one 48" x 13" front-opening lid and two 17" x 16" side doors one
12" x 24"
Standard with BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator optional.
split-level cabinet Inside:
48" x 24" x 24"
Overall:
53" x 65" x 38" closed / 50" open
one 48" x 24" flip-top lid and one 11" x 11" side door one
12" x 24"
Standard with BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator optional. MM4830S also available.
cabinet Inside:
48" x 36" x 36"
Overall:
53" x 78" x 37"
two 28" x 30" side doors one
12" x 24"
Standard with BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator optional.
split-level cabinet Inside:
48" x 31" x 48"
Overall:
53" x 71" x 74" closed / 77" open
one 48" x 48" flip-top lid and one 20" x 36" side door one
12" x 24"
Standard with BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator optional.
split-level cabinet Inside:
60" x 24" x 24"
Overall:
65" x 65" x 38" closed / 50" open
one 60" x 24" flip-top lid and one 17" x 16" side door one
12" x 24"
Two work stations. Standard with one BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator optional.
split-level cabinet Inside:
60" x 31" x 48"
Overall:
65" x 71" x 74" closed / 77" open
one 60" x 48" flip-top lid and one 20" x 36" side door two
12" x 24"
Two work stations. Standard with dual BP Dust Collectors. PT (pull-through) Dust Collectors or Abrasive Separators optional. Includes Neoprene gloves.
split-level cabinet Inside:
72" x 31" x 48"
Overall:
77" x 71" x 74" closed / 77" open
one 72" x 48" flip-top lid and one 20" x 36" side door two
12" x 24"
Two work stations. Standard with dual BP Dust Collectors. PT (pull-through) Dust Collectors or Abrasive Separators optional. Includes Neoprene gloves.
split-level cabinet Inside:
96" x 31" x 48"
Overall:
101" x 71" x 74" closed / 77" open
one 96" x 48" flip-top lid and one 20" x 36" side door two
12" x 24"
Jumbo split-level for very large parts. Two work stations. Standard with dual BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator optional.
