BRP Series – Industrial Grade, Direct Pressure, Blast Room Package, Abrasive Blasting System
The BRP Series is an economical way to convert any area into a quasi-Blast Room. The convenience of a Blast Room without the high cost associated with building one is the major benefit of this system. This industrial sandblaster system includes a High Capacity Pressure Pot, Sweep-In Media Recovery System, Media Abrasive Separator, and Dust Collector.
BRP Series – Industrial Grade, Direct Pressure, Blast Room Package, Abrasive Blasting System
The BRP Series – Industrial Grade, Direct Pressure, Blast Room Package, Abrasive Blasting System is an economical way to convert any area into a quasi-Blast Room. The convenience of a Blast Room without the high cost associated with building one is the major benefit of this system. The system includes a High Capacity Pressure Pot, Sweep-In Media Recovery System, Media Abrasive Separator, and Dust Collector.
Optional items include a 55 gallon Dust Drum Package which will automatically collect and store the accumulated dust in a sealed container. An Air Fed Helmet, Air Line Filter and Air Hose are also available to provide a clean air supply to the operator during the blasting operation.
Benefits
- Converts an Existing Space Into a ‘Blast Room’
- High Capacity ASME Pressure Pot
- Media Collection and Cleaning System
- Heavy-Duty Construction
- Media Can be Recycled to Reduce Operational Costs
- Usable with Nearly All Dry Abrasive Blasting Media
- Any Size and Weight Part Can be Blasted
Applications
- Surface Preparation
- Paint Stripping
- Scale Removal
- Peening
Typical Uses
- Surface Preparation for Coating
- Machining Mark Removal
- Rust Removal
Specifications
BRP Series Specifications

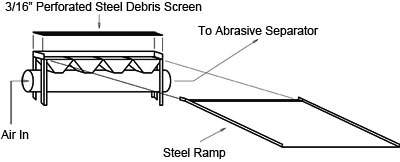

Sweep-in Media Feed Hopper |
|---|
 Operator sweeps Abrasive Blasting Media from blast room floor, up ramp and into the feed hopper. The abrasive then falls into the air stream and is carried through a heavy duty conveying hose to the abrasive separator for cleaning. The removable 3/16" screen traps debris. 14" high.
 |

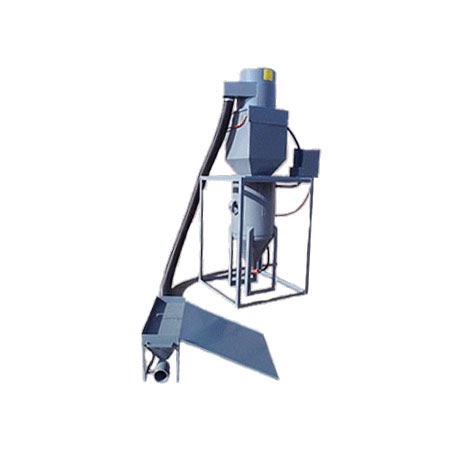

Abrasive Separator Specifications |
|---|
 Abrasive Separator to remove dust and debris from media:
|
Dust Collector Specifications |
|---|

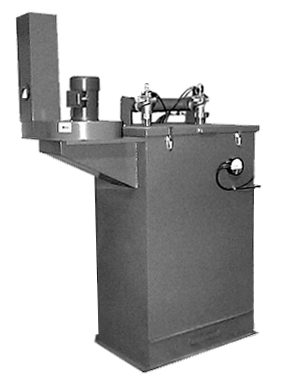

1500 RPC Cartridge Dust Collector designed for continuous duty blasting operations. Provides optimum dust filtration efficiency with minimum maintenance. Cartridge filters are automatically pulsed clean during operation.
|
Additional Information
| Selected Package Gross Weight | 1000 lbs |
|---|
