DP Series – Industrial Grade, Direct Pressure, Abrasive Blasting Cabinet System
DP Series – Industrial Grade, Direct Pressure, Abrasive Blasting Cabinet System
The DP Series, Industrial Blasting Cabinets are efficient and productive systems. Designed for small and large shops, these direct pressure systems are ideal for large quantities of blasting or when efficiency and shorter blasting times are required. The DP Series can be used with all types of dry abrasive blast media.
DP Series – Industrial Grade, Direct Pressure, Abrasive Blasting Cabinet System
The DP Series – Industrial Grade, Direct Pressure, Abrasive Blasting Cabinet System is engineered for industrial applications and everyday use. These economical vibratory tumblers are great ‘starter’ systems and for those unfamiliar with mass finishing. Both deburring and polishing can be accomplished on a limited budget.
Benefits
Short and Productive Blasting Process
Industrial Grade Construction
Side Doors and Flip Tops for Easy Access to Parts
Adjustable Pressure Valve
Pressurized, Dense Blast Streams
Lower Pressure Blasting for Longer Abrasive Media Life
Media is Recycled to Reduce Operational Costs
Dust Collector and Abrasive Separator Included (Except for Model DP3630)
Usable With Nearly All Dry Abrasive Blasting Media
Applications
Paint Stripping
Surface Preparation
Scale Removal
Etching
Peening
Cleaning
Typical Uses
Machining Mark Removal
Surface Preparation for Coating
Parts Cleaning
Rust Removal
Decorative Etching
Advantages
Abrasive blasting cabinet encloses the blasting environment to provide an efficient blast cleaning while maintaining a clean surrounding work area. Production rates of the pressure blasting machine are dependent on the size of the nozzle, working pressure, compressor capacity, size and type of abrasive media, and distance between the nozzle and the cleaning surface.
Abrasive Blasting cabinet equipped from medium to high-performance applications. The machine frequently utilized to remove the rust from cast products, deburring transmission parts, cleaning strip steel and car crankshafts, pivot shafts, motor squares, and back hub lodgings.
A blast cabinet is a closed-loop system that allows the recycling of the abrasive after blasting. It usually consists of four components; the abrasive blasting system, the containment (cabinet), the dust collection, and the abrasive recycling system. The operator blasts the parts from the outside of the cabinet, viewing the part through a view window, by placing his arms in gloves attached to glove holes on the cabinet, turning the blast on and off using a foot pedal.
Specifications
DP Series Specifications
DP Series Components & Features
Cabinet
14-Gauge Welded Steel Construction
Double Floor - 1/8" Expanded Steel Plus Carbon Screen
3/4" Pipes and Heavy-Duty Mixing Valve
ASME Coded Pressure Vessel With Easy Access Clean-Out Port, Automatic Sealing Plunger, and Pneumatic Vibrator
Pressure Tank Mounted at the Bottom of the Cabinet Allows for the Use of Heavy Steel Abrasives (Model DP3630)
Optional Deluxe Counter Balance Available on All Split-Level Cabinet Models
Window
Easy Change Out Window Frame
Safety Glass Windows for Excellent Visibility and Increased Efficiency
Safety Glass Window Protective Underlayment Easily Removable and Installable to Protect From Unwanted Window Frosting
Lighting
Fluorescent Lighting to Eliminate Shadows and Minimize Energy Usage
Gloves
8" Diameter Neoprene
Gun System
Equipped with Tungsten Carbide Nozzles (1/4" Diameter Nozzle is Standard. 1/8", 3/16", and 5/16" Diameter Nozzles are Also Available)
With a Full Pot Using a 1/4" Nozzle and Blasting at 50 PSI the Pressure Pot Will Empty in About 10 Minutes. When the Foot Pedal is Released it Takes About 10 Seconds for the Pressure in the System to Bleed Out Through the Nozzle. The Plunger in the Pressure Pot Will Then Drop Allowing the Cleaned Media in the Storage Hopper to Refill it. Refilling Can Take 20-60 Seconds Depending on Media Type and Grit Size.
Dust Collectors
All Models Except DP3630 Feature a 400CFM Pull-Through Type Dust Collector with Motor and Impeller on Clean-Air Side, 10-Gauge Welded Steel Construction, 30 Tubular Filter Bags (145 ft² Surface Area) and a Manual Bag Shaker
Model DP3630 Features a Pull-Through Type Enclosed Dust Collector with Motor and Impeller on Clean Air Side, 14-Gauge Welded Steel Construction, Full Size Access Door, 12 Tubular Filter Bags, Removable Dust Drawer and Exhaust Muffler.
All Models Except the DP3630 Feature a 230 Volt/60 Hz/1 Phase Motor
Model DP3630 Features a 115 Volt/60 Hz/1 Phase motor
Abrasive Separator
850 CFM
10-Gauge Welded Steel
Vibrating Particle Screen
Motor: 2 HP/3450 RPM/230 Volt/1 Phase/60 Hz
Not Available on DP3630
Air Cylinder
Optional Accessory for Power-Assisted Opening and Closing of Larger Split-Level Models
DP Series Model Components & Features
Model
Style
Dimensions
(Width x Height x Depth)
Floor Space (W x D) Includes Dust Collector
Doors
Windows

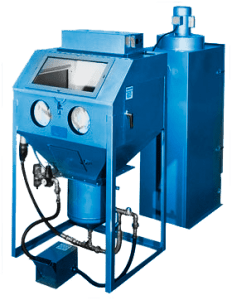

DP3630
Cabinet
Inside:
36" x 23" x 30" Overall:
41" x 68" x 35" Floor Space: 41" x 67"
Two 14" x 20" Side Doors
One 36" x 13" Lid Opening
One
12" x 24"

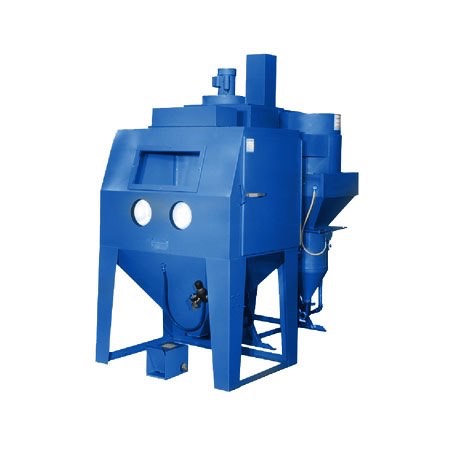

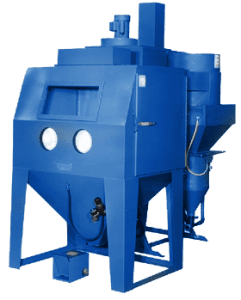

DP3636
Cabinet
Inside:
36" x 36" x 36" Overall:
40" x 78" x 37" Floor Space: 96" x 85"
Two 28" x 30" Side Doors
One
12" x 24"
DP4040S
Split-Level Cabinet
Inside:
40" x 31" x 40" Overall:
44" x 71" x 66" Closed
44" x 77" x 66" Open Floor Space: 96" x 71"
One 20" x 30" Side Door
One 40" x 40" Flip Top Lid
One
12" x 24"
DP4836
Cabinet
Inside:
48" x 36" x 36" Overall:
53" x 78" x 37" Floor Space: 104" x 90"
Two 28" x 30" Side Doors
One
12" x 24"
DP4848S
Split-Level Cabinet
Inside:
48" x 31" x 48" Overall:
52" x 71" x 74" Closed
52" x 71" x 77" Open Floor Space: 100" x 77"
One 20" x 36" Side Door
One 48" x 48" Flip Top Lid
One
12" x 24"
DP6030S
Split-Level Cabinet
Dual Workstations For a Single Operator
Inside:
60" x 31" x 30" Overall:
64" x 71" x 56" Closed
64" x 71" x 60" Open Floor Space: 111" x 77"
One 17" x 16" Side Door
One 60" x 30" Flip Top Lid
Two
12" x 24"
DP6048S
Split-Level Cabinet
Dual Workstations For a Single Operator
Inside:
60" x 31" x 48" Overall:
65" x 71" x 74" Closed
65" x 71" x 77" Open Floor Space: 111" x 77"
One 20" x 36" Side Door
One 60" x 48" Flip Top Lid
Two
12" x 24"
DP7248S
Split-Level Cabinet
Dual Workstations For a Single Operator
Inside:
72" x 31" x 48" Overall:
75" x 71" x 74" Closed
75" x 71" x 77" Open Floor Space: 127" x 90"
One 20" x 36" Side Door
One 72" x 48" Flip Top Lid
Two
12" x 24"
DP9648S
Split-Level Cabinet
Dual Workstations For a Two Operators
or
Dual Workstations For a Single Operator
Inside:
96" x 31" x 48" Overall:
102" x 71" x 74" Closed
102" x 71" x 77" Open Floor Space: 200" x 90"
Two 36" x 20" Side Doors
One 96" x 48" Flip Top Lid
Two
12" x 24"

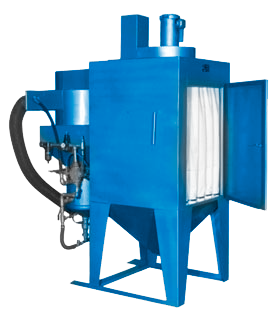

DP850 Retrofit Package
The DP850 Retrofit Package Converts our Siphon Type Cabinet (SS Series) to a Direct Pressure Unit. This Unit Can be Adapted to Any Standard Siphon-Type Cabinet With a Minimum of Effort to Afford You the Speed and Efficiency of Direct Pressure Blasting. Includes 850 CFM Abrasive Separator. Abrasive Capacity: 150 lb. Overall Dimensions: 70" x 104" x 40". Additional Piping and Modifications Must Be Made to Existing Cabinet.
