EVB Series – Heavy-Duty Grade, Bowl-Style, Floor Model, Vibratory Tumbler
The EVB Series bowl-style vibratory tumblers are compact, floor-model systems. These heavy-duty tumblers are designed for production environments where large quantities of parts need to be finished. The screen deck provides automated separation of media and parts.
EVB Series – Heavy-Duty Grade, Bowl-Style, Floor Model, Vibratory Tumbler
The EVB Series Heavy-Duty Grade, Bowl-Style, Floor Model, Vibratory Tumble is a compact, state-of-the-art, bowl style vibratory systems. These tumblers feature, heavy-duty motors and are designed for high volume usage. Available in multiple capacities and with a wide variety of options and upgrades for deburring and polishing. The extended screen deck provides quick and easy separation of the parts and media.
Benefits
- Bowl Shape Rolls Load for Efficient Finishing
- Wet or Dry Processing
- Heavy-Gauge Steel for Durability
- High Durometer Polyurethane Lined
- High Amplitude for Efficient Processing
- Manual Hand Dam Control
- Extended Screen Deck for Media/Parts Separation
- Can be used with Steel Tumbling Media (standard on systems up to EVB-2400)
Applications
- Deburring
- Polishing
- Burnishing
- Cleaning and Rust Removal
- Scale Removal
Typical Uses
- Full Scale, Production Environments
- Large Quantity Smaller Parts Tumbling
- Deburring of Stamped Parts
- Oil and Water Removal From Parts
Specifications
EVB Series Model Specifications |
||||||
|---|---|---|---|---|---|---|
Model |
Working Capacity ( ft³) |
Bowl Diameter |
Channel Width |
Motor HP |
Full Load Amps @480V |
Floor Space Required |
EVB-380 |
4 | 38” | 9.5” | 3 | 4 | 4’ x 4’ |
EVB-700 |
7.5 | 50” | 11” | 5 | 6 | 5’ x 5’ |
EVB-1000 |
10 | 55” | 13.5” | 7.5 | 10 | 5’ x 5’ |
EVB-1300 |
14 | 62” | 15” | 7.5 | 10 | 6’ x 6’ |
EVB-1900 |
20 | 70” | 17” | 15 | 20 | 6.5’ x 6.5’ |
EVB-2400 |
25 | 74” | 19” | 15 | 20 | 7’ x 7’ |
EVB-3600 |
36 | 92” | 20” | 20 | 27 | 8’ x 8’ |
EVB-5000 |
52 | 100” | 22” | 20 | 27 | 9’ x 9’ |
EVB-9200 |
95 | 124” | 28” | 30 | 38 | 11’ x 11’ |
Options & Upgrades(Available on most models) |
|
|||||
Additional Information
| Selected Package Gross Weight | 1000 lbs |
|---|
Rigid Sound Hood

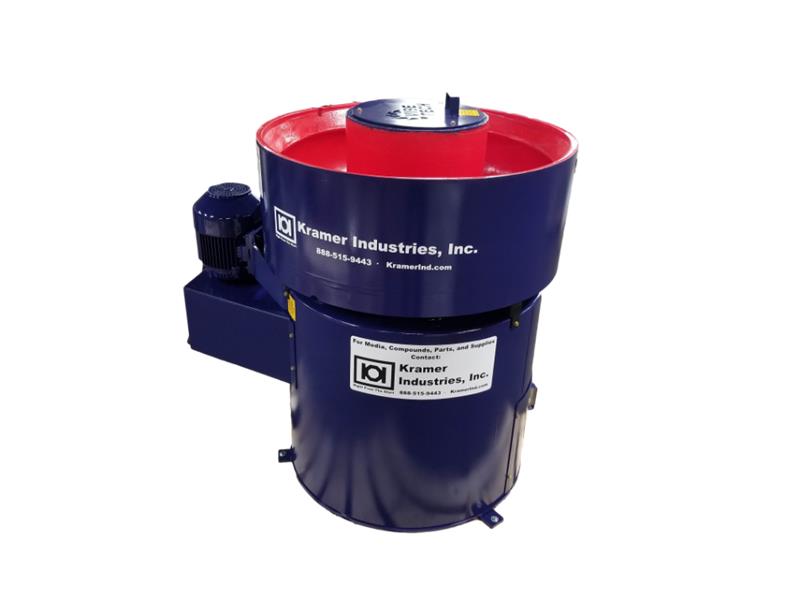

EVB-380 Vibratory Tumbler

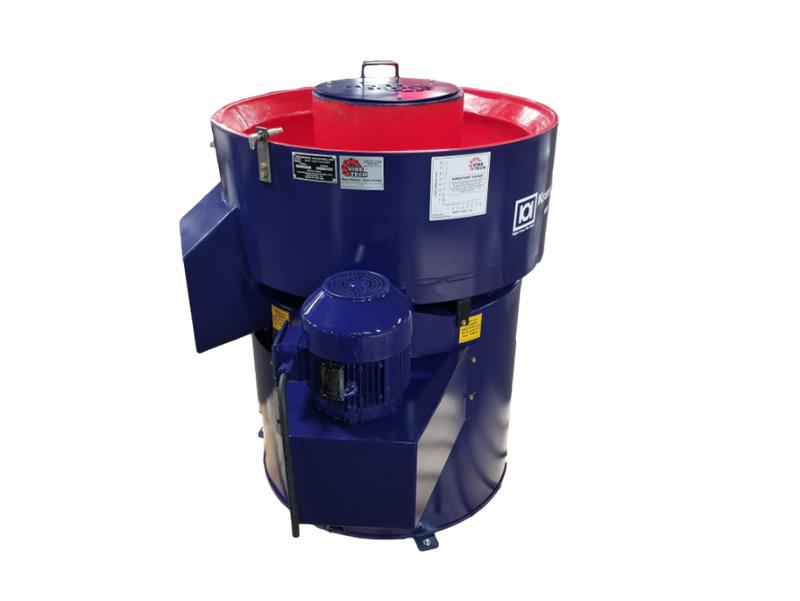

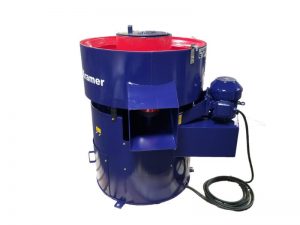

EVB-380 Motor and Media Unload Plug

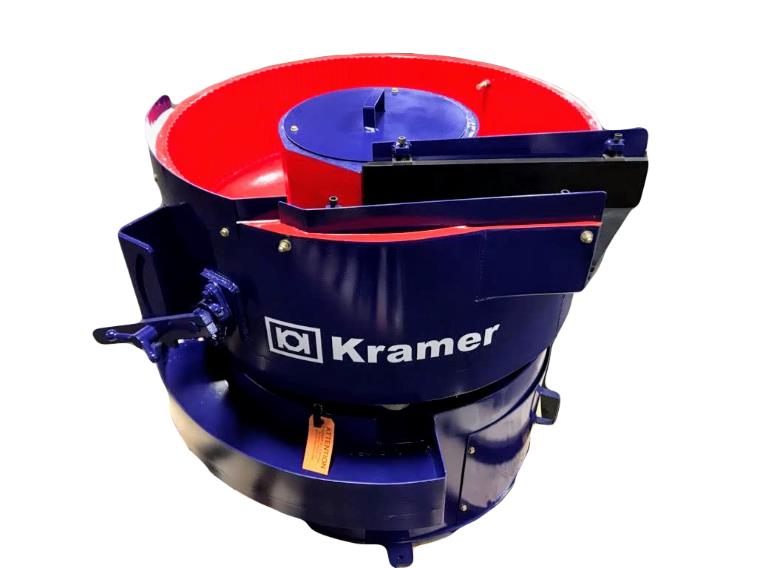

EVB-380 Lining and Solution Reservoir
EVB-380 Hand Dam Control

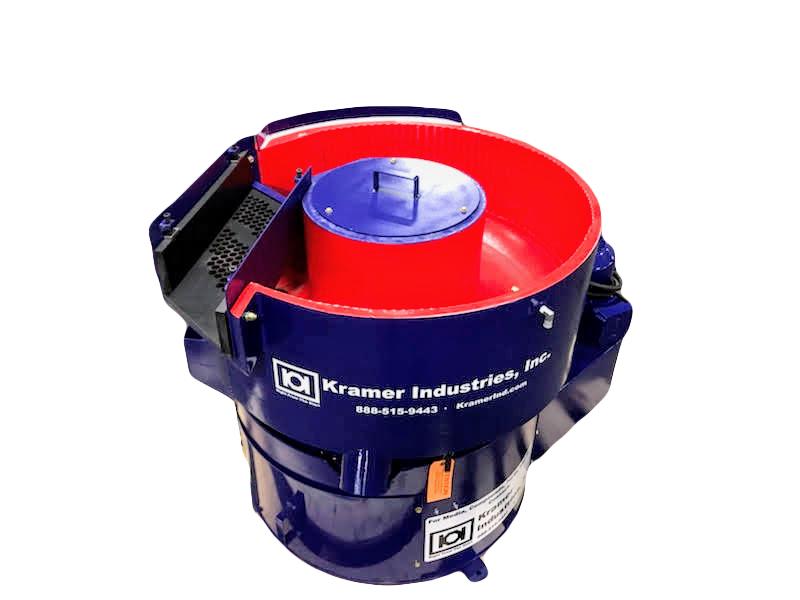

EVB-380 Separating Screen Deck

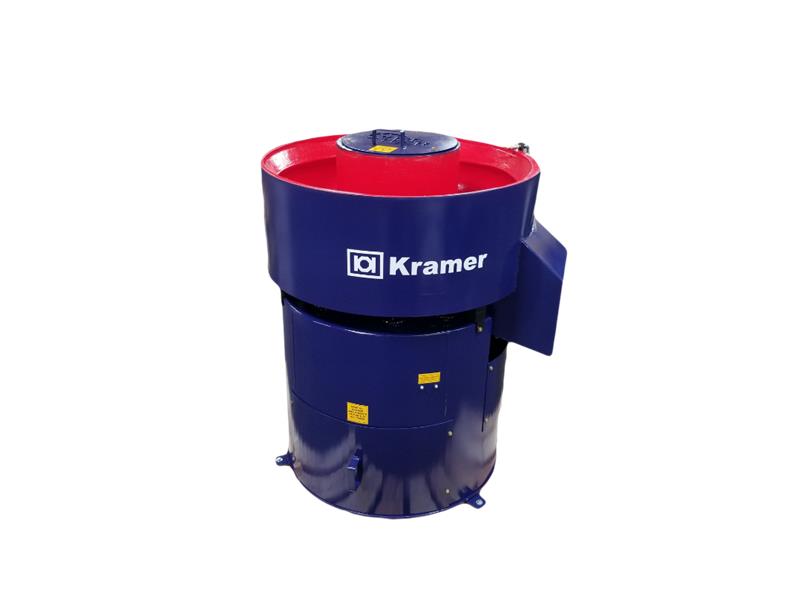

EVB-380 Full View

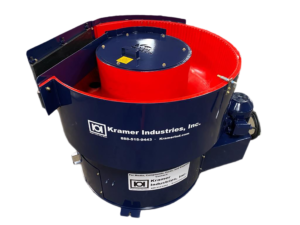

EVB-700 Front

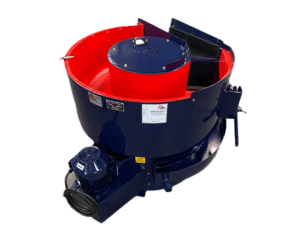

EVB-700 Motor
EVB-700 Screen Deck
