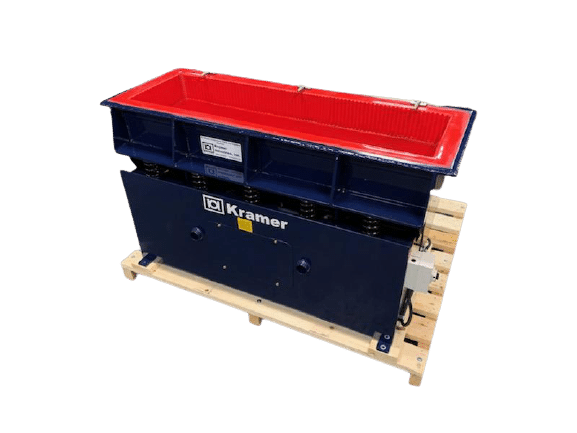

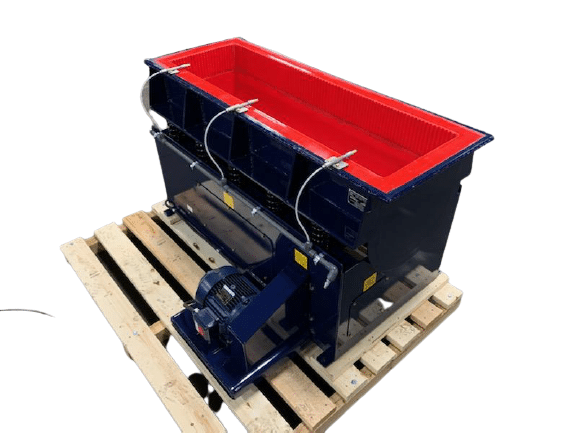

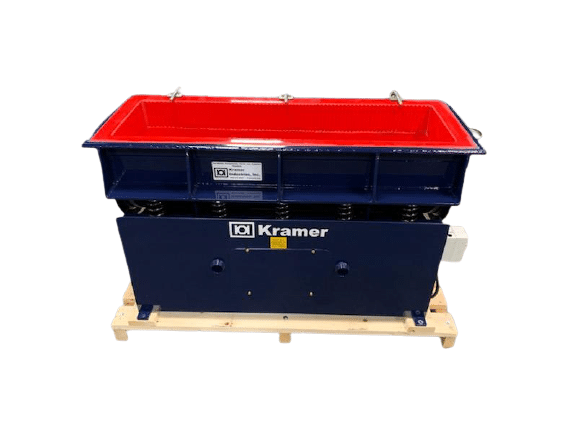

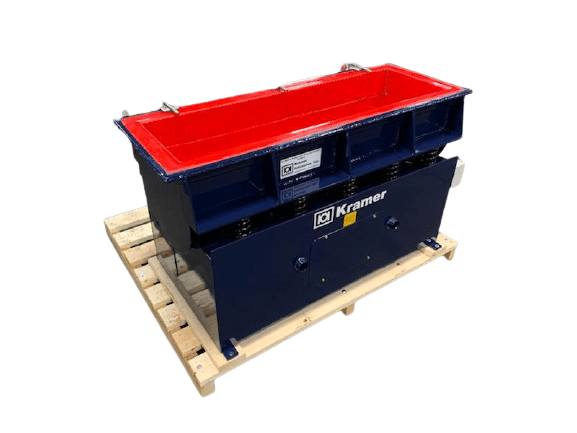

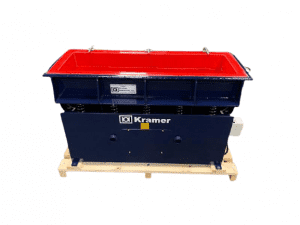

EVT Series – Heavy-Duty Grade, Tub-Style, Floor Model, Vibratory Tumbler
The EVT Series Heavy-Duty Grade, Bowl-Style, Floor Model, Vibratory Tumble is the most commonly used, highly versatile, tub style vibratory systems. These tumblers feature, heavy-duty motors and are designed for large quantities of parts and for large, heavy, and/or long parts. Available in wide multitude of capacities and with a wide variety of options and upgrades for deburring and polishing.
EVT Series – Heavy-Duty Grade, Tub-Style, Floor Model, Vibratory Tumbler
The EVT Series tub style vibratory tumblers are the work-horse of the surface finishing industry. These heavy-duty tumblers are designed for both large batch production environments as well as for large, heavy, and/or long parts. Loading and unloading is easily done manually.
Benefits
- Engineered U-Shape Tub Rolls Load Evenly and Efficiently
- Wide and Long Channel Dimensions
- Wet or Dry Processing
- Heavy-Gauge Steel for Durability
- High Durometer Polyurethane Lined
- High Amplitude for Efficient Processing
- Dividers Can Be Used to Keep Parts Separated
- Adjustable Weights to Increase/Decrease the Tumbling Energy
- Can be used with Steel Tumbling Media (most models)
Applications
- Deburring
- Polishing
- Burnishing
- Cleaning and Rust Removal
- Scale Removal
- Delicate or High Value Part Tumbling
Typical Uses
- Large and/or Heavy Part Tumbling
- Ideal for Long Parts
- Full Scale, Production Environments
- Large Quantity Smaller Parts Tumbling
- Deburring of Stamped Parts
- Oil and Water Removal From Parts
Specifications
| Tub Capacity: 3.0 to 15.0 Cubic Feet | |||||
| Model | Working Capacity (ft3) | Tub Width | Tub Length | Tub Depth | Motor HP |
| EVT-300 | 3.0 | 17.5” | 24” | 19” | 2 |
| EVT-450 | 4.5 | 17.5” | 36” | 19” | 3 |
| EVT-570 | 5.7 | 24” | 24” | 26” | 3 |
| EVT-600 | 6.0 | 17.5” | 48” | 19” | 5 |
| EVT-750 | 7.5 | 17.5” | 60” | 19” | 5 |
| EVT-850 | 8.5 | 24” | 36” | 26” | 5 |
| EVT-900 | 9.0 | 17.5” | 72” | 19” | 5 |
| EVT-1180 | 11.8 | 24” | 50” | 26” | 5 |
| EVT-1200 | 12.0 | 17.5” | 96” | 19” | 7.5 |
| EVT-1320 | 13.2 | 30” | 36” | 32” | 7.5 |
| EVT-1340 | 13.4 | 32” | 32” | 34” | 7.5 |
| EVT-1410 | 14.1 | 24” | 60” | 26” | 7.5 |
| EVT-1500 | 15.0 | 17.5” | 120” | 19” | 10 |
| Tub Capacity: 17.0 to 40.0 Cubic Feet | |||||
| Model | Working Capacity (ft3) | Tub Width | Tub Length | Tub Depth | Motor HP |
| EVT-1700 | 17.0 | 24” | 72” | 26” | 10 |
| EVT-1770 | 17.7 | 30” | 48” | 32” | 10 |
| EVT-1910 | 19.1 | 36” | 36” | 38” | 10 |
| EVT-2260 | 22.6 | 24” | 96” | 26” | 15 |
| EVT-2540 | 25.4 | 36” | 48” | 38” | 15 |
| EVT-2580 | 25.8 | 30” | 72” | 32” | 15 |
| EVT-2830 | 28.3 | 24” | 120” | 26” | 20 |
| EVT-3180 | 31.8 | 36” | 60” | 38” | 20 |
| EVT-3390 | 33.9 | 24” | 144” | 26” | 20 |
| EVT-3530 | 35.3 | 30” | 96” | 32” | 20 |
| Tub Capacity: 40.0 Cubic Feet and larger | |||||
| Model | Working Capacity (ft3) | Tub Width | Tub Length | Tub Depth | Motor HP |
| EVT-4330 | 43.3 | 42” | 60” | 44” | 20 |
| EVT-4420 | 44.2 | 30” | 120” | 32” | 20 |
| EVT-4450 | 44.5 | 36” | 84” | 38” | 20 |
| EVT-5650 | 56.5 | 48” | 60” | 52” | 25 |
| EVT-6060 | 60.6 | 42” | 84” | 44” | 30 |
| EVT-6360 | 63.6 | 36” | 120” | 38” | 20 |
| EVT-6920 | 69.2 | 42” | 96” | 44” | 30 |
| EVT-7630 | 76.3 | 36” | 144” | 38” | 30 |
| EVT-8650 | 86.5 | 42” | 120” | 44” | 30 |
| EVT-10390 | 103.9 | 42” | 144” | 44” | 50 |
| EVT-10600 | 106.0 | 60” | 72” | 70” | 30 |
Options & Upgrades (available on most models)
- Tub Dividers
- NEMA 101 Control Panel
- Compound Metering System
- Media Unload Plug
- Pneumatic Gate
- Auto Grease System
- Sound Cover – Vinyl (with optional winch) and Rigid Sound Hood
- Variable Speed Drive
- Automated Unload
- Gate Clearing
- Settling Tank
Additional Information
Deprecated: Function WC_Product::list_attributes is deprecated since version 3.0! Use wc_display_product_attributes instead. in /home/kramerin/public_html/wp-includes/functions.php on line 5379
| Selected Package Gross Weight | 1000 lbs |
|---|
