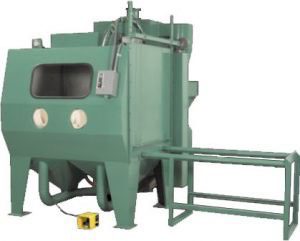

The HDP Series, Heavy Duty Blasting Cabinets are designed for large shops and when high volume blasting is required. These highly customizable systems can be upgraded and modified to meet specific applications and requirements. A standard exterior track allows easy part loading and unloading. The HDP Series is our most productive blast system.

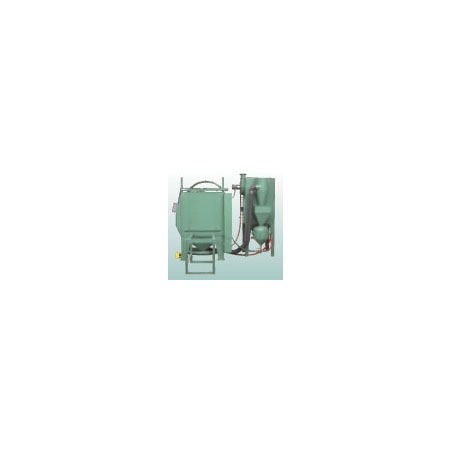

HDP Series – Heavy-Duty Grade, Direct Pressure, Abrasive Blasting Cabinet System
The HDP Series – Heavy-Duty Grade, Direct Pressure, Abrasive Blasting Cabinet System is a heavy-duty systems engineered for the most demanding applications. Designed for maximum productivity and operational efficiency, these systems are the optimal choice for larger production and manufacturing facilities. With improved dust collection and media recovery, these systems are often custom modified to fit perfectly in specific manufacturing situations.
Benefits
Industrial Grade Construction
Side Doors and Vertical Doors for Easy Access to Parts
Exterior Track for Easy Loading of Heavy Parts up to 5,000 pounds
Pressurized, Dense Blast Streams
Lower Pressure Blasting for Longer Media Life
Media is Recycled to Reduce Operational Costs
Cartridge Dust Collectors
Large ASME Certified Pressure Pot
Usable With Nearly All Dry Abrasive Blasting Media
Can be Converted to Siphon Blasting for Continuous Blasting Applications
Applications
Heavy Duty Blasting
Continuous Blasting
Customized Blasting Applications
Paint Stripping
Surface Preparation
Scale Removal
Etching
Peening
Typical Uses
Machining Mark Removal
Heavy and Large/Long Parts Blasting
Feed Screw Cleaning
Mold Cleaning and Surface Preparation
Surface Preparation for Coating
Parts Cleaning
Rust Removal
Specifications
HDP Series Specifications
HDP Series Components & Features
Cabinet
12-Gauge Reinforced Continuously Welded Steel Construction
60 Degree Minimum Sump Media Flow
1 Swing Side Door and 1 Vertical Side Door (Only 1 Door on HDP2424)
Durable Enamel Finish - Primed, Painted and Corrosion Resistant
Moveable Foot Valve
Dust Collector and Media Reclaimer Redesigned to Fit into Compact Footprint
Working Chamber
Safety Door Interlocks
Self Adjusting Door Latch
Knife-Edge, Self-Sealing, Full Gaskets
Full-Length Hinges
Turntable
Track Assembly (Not Included on Model HDP2424)
Doors
Two doors (1 Swing Side Door and 1 Vertical Door) Are Standard on most Models (Except For Model HDP2424, Which Has Just One Door on the Right Side)
View Window
Front - Round Corner 13 1/2" x 28 1/2"
Side - Round Corner 7 1/2" x 11"
Pressure Pot
ASME Coded, 1.6 ft3 Capacity
Remote Controlled
Automatic Refilling
Sight Glass to View Media Level
Gloves
Abrasive Resistant
Full Length x 8"
Static Resistant Gauntlet Style
Hoses
1/2" 4-ply Heavy-Duty
Whip End Blast Hose
Blast Nozzle
1/4" - Standard
Long Boron Carbide With an Aluminum Jacket
Silicon Liner, Urethane Jacket
Approximate Air Requirements (CFM)
3/16" Nozzle: 22 CFM at 40 PSI and 30 CFM at 60 PSI
1/4" Nozzle: 40 CFM at 40 PSI and 55 CFM at 60 PSI
5/16" Nozzle: 70 CFM at 40 PSI and 90 CFM at 60 PSI
Blow-Off Nozzle
Fingertip Control Blow-Off Nozzle
Dust Collector
1 HP, 1 Cartridge, 900 CFM Dust Collector – Standard on HDP4836 and smaller
2 HP, 2 Cartridge, 1210 CFM Dust Collector – Standard on most models
5HP, 4 Cartridge, 1585 CFM Dust Collector - Standard on HDP9648
Additional Upgrades

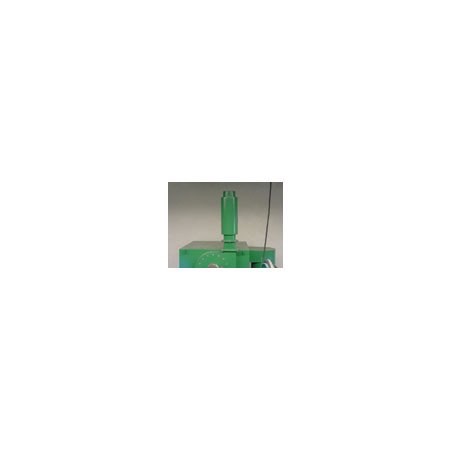

Silencer (26" high)
Easel

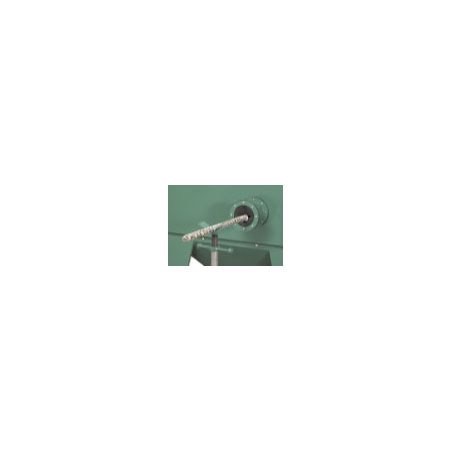

Porthole - Specialized Port to Allow for Easy Cleaning of Feed Screws (See Picture Above)
Auto Pulse Jet Filter Cleaning
Automatic Rotating Turntable
Automatic Chain Driven In/Out Turntable
5 HP, 4 Cartridge Dust Collector
Upgrade to 4,000 Pound Capacity
Automated Open/Close Vertical Door
HDP Series Model Measurement Specifications
Model
Dimensions
(width x height x depth)
floor space includes dust collector
Swing Door
Opening
(width x height)
Vertical Door Opening
(width x height)
Height Clearance
(from top of turntable)
HDP2424
Inside:
24" x 24" x 24" Floor Space:
84" x 127" x 92"
19 1/2" X 17 1/2"
N/A
N/A
HDP4836
Inside:
48" x 36" x 36" Floor Space:
108" x 127" x 104"
31 1/2" X 29 1/2"
32" X 27 1/2"
20"
HDP4848
Inside:
48" x 48" x 48" Floor Space:
108" x 127" x 116"
43 1/2" X 41 1/2"
44" X 39 1/2"
32"
HDP6048
Inside:
60" x 48" x 48" Floor Space:
120" x 127" x 116"
43 1/2" X 41 1/2"
44" X 39 1/2"
32"
HDP6060
Inside:
60" x 60" x 60" Floor Space:
120" x 127" x 128"
55 1/2" X 53 1/2"
56" X 51 1/2"
44"
HDP9648
Inside:
96" x 48" x 48" Floor Space:
156" x 127" x 116"
