SS Series – Industrial Grade, Suction Style, Abrasive Blasting Cabinet System

The SS Series, Industrial Suction Sandblaster Cabinet is the most economical and commonly used blast cabinet. Designed for small shops and light production areas, the siphon/suction systems are ideal for quick blasting and surface prep. The SS Series can be used with all types of dry abrasive blast media.

Description
Specifications
Additional information
Comparison Photos

SS Series – Industrial Grade, Suction Style, Abrasive Blasting Cabinet System

The SS Series – Industrial Grade, Suction Style, Abrasive Blasting Cabinet System is ideal for industrial applications and when a quick blasting project is required. The suction (or siphon) style systems are economical and easy to use. The wide variety of cabinet sizes are available to fit any shop and part size and any budget. These systems can be used with almost any dry abrasive blast systems.

Benefits

Industrial Grade Construction
Side Doors and Flip Tops for Easy Access to Parts
Adjustable Pressure Valve
Air and Abrasive Mixed at 2:1 Ratio for Optimal Blasting
Media is Recycled to Reduce Operational Costs
All Systems Supplied with a Dust Collector
Optional Abrasive Separator to Clean Media Prior to Re-Blasting
Usable with Nearly All Dry Abrasive Blasting Media

Applications

Paint Stripping
Surface Preparation
Scale Removal
Etching
Peening
Cleaning

Typical Uses

Machining Mark Removal
Surface Preparation for Coating
Parts Cleaning
Rust Removal
Decorative Etching

Specifications

SS Series Specifications

SS Series Components & Features
Cabinet	Tapered Media Hopper with Bottom Trap Door for Easy Disposal of Spent Media Top & Side Loading Doors on Most Models 14-Gauge Welded Steel Construction 8" Armholes on All Models 40" x 40" and Larger MM Models Have a Double Floor - ¹/8" Steel Plus Carbon Screen
Window	Easy Change Window Frame Safety Glass Windows for Excellent Visibility and Increased Efficiency
Lighting	SM Models Have Incandescent Lighting MM Models Have Fluorescent Interior Lighting to Eliminate Shadows and Minimize Energy Consumption
Gloves	Heavyweight Rubber Gloves (Neoprene Gloves Optional) Built Into Front of Cabinet
Gun System	Tungsten Carbide Nozzle Model SM20B: ¹/4" ID Nozzle and ¹/8" Air Jet and Gun (12 CFM). Models SM24C and SM30C: ⁵/16" ID Nozzle and ¹/8" Air Jet and Gun (12 CFM). All MM Models: ⁵/16" ID Nozzle and ⁵/32" Air Jet and Gun (25 CFM). Safety Enclosed Foot Valve Blasting Control
Dust Collector	All Models Except SM20B Include a BP Dust Collector That Vacuums Dust and Contamination From the Cabinet SM20B Includes a 100 CFM Dust Collector BP Dust Collector Measures 57¹/2" High and 14" in Diameter Separates Broken-Down Abrasives Self-Cleaning Bag
Air Pressure Gauge	Included With All MM Models; Optional With All SM Models
Electrical	115 Volt, 1 Phase, 60 Cycle Motor

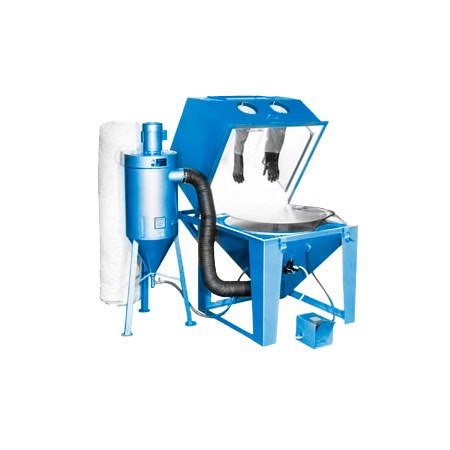

Optional Accessories	Abrasive Separators Available in 300, 450 and 600 CFM. Retrofit Packages Are Also Available. Refer to Abrasive Separator Specifications For More Information Upgraded Dust Collectors Available - Models Include Deluxe, 400PT and 800PT. Refer to Dust Collector Specifications for More Information Work Stand (24" High With Swing-Up Shelf and Slide Out Tray) Available for Model SM20B Air Pressure Regulator and Gauge Available on All SM models (Included with MM Models) Water Filter Available on All Models Blow Off Gun Available on All Models Auto Power Basket Available on All Models; Retrofit Package Also Available; 8" x 8" Basket, 8" x 12" Basket, or 12" x 12" Basket, Available With or Without Timer Air Cylinder For Power-Assisted Opening and Closing of Larger Split-Level Models Spare Parts Package Available For All Models Turntable - Manual , 300 lb. or 2,000 lb. Capacity (Cabinet Floor Must be Reinforced if Loads of 1,000 lbs. or More Are Anticipated) - Available in 18", 26" and 36" Diameter

Deluxe Packages

Deluxe Packages Are Available on MM3624C and Larger Models which include:

Abrasive Separator
Enclosed Dust Collector
16 Tubular Filter Bags
Water Filter
Air Vibrator
Blow Off Gun

450 CFM Abrasive Separator on SM3624C, MM4824C, MM4224S and MM4824S

600 CFM Abrasive Separator on MM4040S, MM4836C, MM6024S, MM4848S, MM6048S, MM7248S and MM9648S

SS Series Model Components & Features
Model	Style	Dimensions (Width x Height x Depth)	Doors	Windows	Features
SM20B	Bench	Inside: 20" x 18" x 18" Overall: 21" x 38¹/2" x 33"	One 20" x 13" Front-Opening Lid	One 18" x 10"	Ideal For Cleaning Small Parts 100 CFM Dust Collector Included

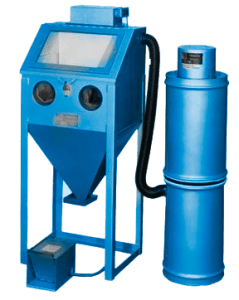

SM24C	Cabinet	Inside: 24" x 23" x 18" Overall: 26" x 62" x 18"	One 24" x 15" Front-Opening Lid	One 19¹/2" x 12"	Carbon Screen Work Floor BP Dust Collector Included
SM30C	Cabinet	Inside: 30" x 23" x 20" Overall: 32" x 62" x 20"	One 30" x 13" Front-Opening Lid	One 19¹/2" x 12"	Carbon Screen Work Floor BP Dust Collector Included
MM3624C	Cabinet	Inside: 36" x 23" x 24" Overall: 38" x 64" x 25"	One 36" x 13" Front-Opening Lid and One 17" x 11" Side Door	One 12" x 24"	Standard With BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator Optional MM3630C Also Available Deluxe Package Available

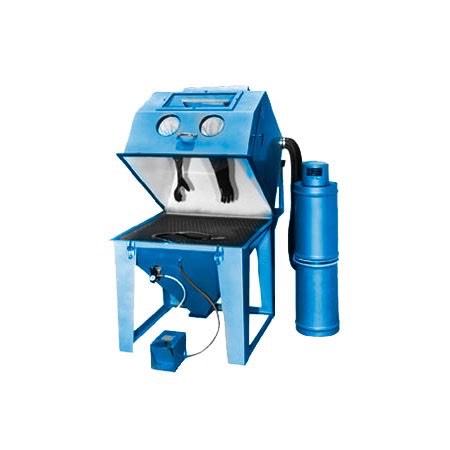

MM4040S	Split-Level Cabinet	Inside: 40" x 31" x 40" Overall: 45" x 71" x 66" Closed / 71" Open	One 40" x 40" Flip-Top Lid and One 20" x 30" Side Door	One 12" x 24"	Standard With BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator Optional Includes Neoprene Gloves Deluxe Package Available
MM4224S	Split-Level Cabinet	Inside: 42" x 24" x 24" Overall: 70" x 65" x 38" Closed / 50" Open	One 42" x 24" Flip-Top Lid and One 11" x 11" Side Door	One 12" x 24"	Standard With BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator Optional MM4230S Also Available Deluxe Package Available
MM4824C	Cabinet	Inside: 48" x 23" x 24" Overall: 52" x 64" x 25"	One 48" x 13" Front-Opening Lid and Two 17" x 16" Side Doors	One 12" x 24"	Standard With BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator Optional Deluxe Package Available
MM4824S	Split-Level Cabinet	Inside: 48" x 24" x 24" Overall: 53" x 65" x 38" Closed / 50" Open	One 48" x 24" Flip-Top Lid and One 11" x 11" Side Door	One 12" x 24"	Standard With BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator Optional Deluxe Package Available
MM4836C	Cabinet	Inside: 48" x 36" x 36" Overall: 53" x 78" x 37"	Two 28" x 30" Side Doors	One 12" x 24"	Standard With BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator Optional Deluxe Package Available
MM4848S	Split-Level Cabinet	Inside: 48" x 31" x 48" Overall: 53" x 71" x 74" Closed / 77" Open	One 48" x 48" Flip-Top Lid and One 20" x 36" Side Door	One 12" x 24"	Standard With BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator Optional Deluxe Package Available

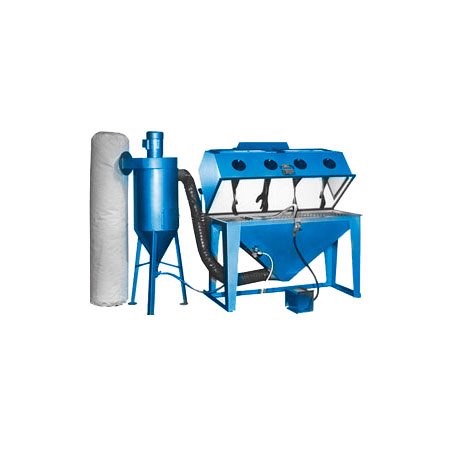

MM6024S	Split-Level Cabinet	Inside: 60" x 24" x 24" Overall: 65" x 65" x 38" Closed / 50" Open	One 60" x 24" Flip-Top Lid and One 17" x 16" Side Door	One 12" x 24"	Two Work Stations Standard With BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator Optional Deluxe Package Available
MM6048S	Split-Level Cabinet	Inside: 60" x 31" x 48" Overall: 65" x 71" x 74" Closed / 77" Open	One 60" x 48" Flip-Top Lid and One 20" x 36" Side Door	Two 12" x 24"	Two Work Stations Standard With BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator Optional Includes Neoprene Gloves Deluxe Package Available
MM7248S	Split-Level Cabinet	Inside: 72" x 31" x 48" Overall: 77" x 71" x 74" Closed / 77" Open	One 72" x 48" Flip-Top Lid and One 20" x 36" Side Door	Two 12" x 24"	Two Work Stations Standard With BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator Optional Includes Neoprene Gloves Deluxe Package Available
MM9648S	Split-Level Cabinet	Inside: 96" x 31" x 48" Overall: 101" x 71" x 74" Closed / 77" Open	One 96" x 48" Flip-Top Lid and One 20" x 36" Side Door	Two 12" x 24"	Jumbo Split-Level For Very Large Parts Two Work Stations Standard With BP Dust Collector. PT (pull-through) Dust Collector or Abrasive Separator Optional Includes Neoprene Gloves Deluxe Package Available
