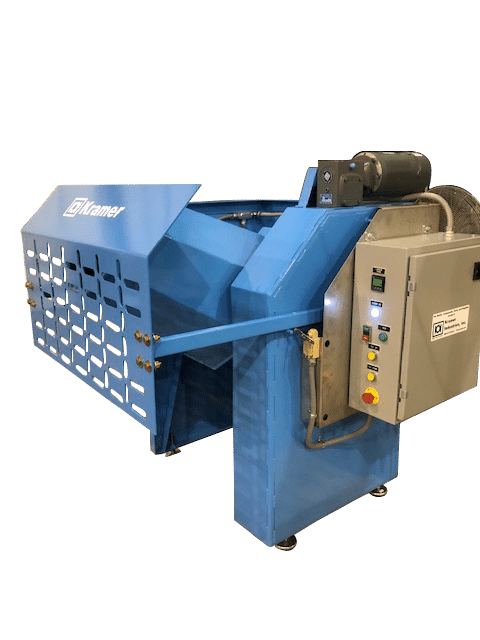

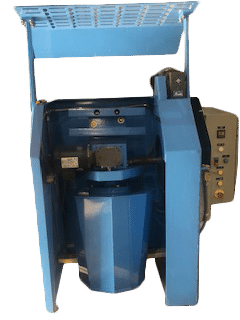

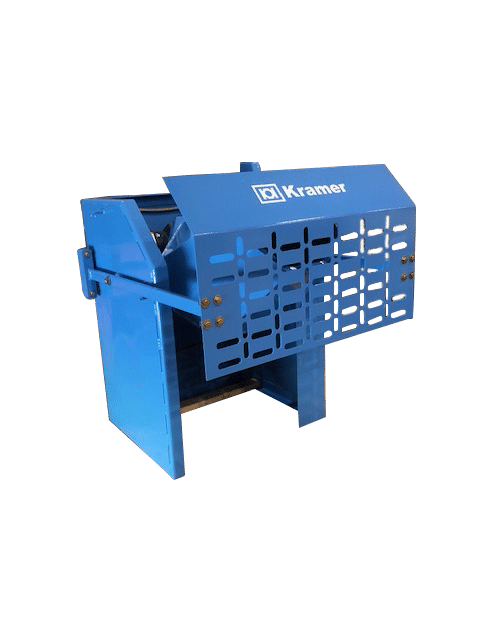

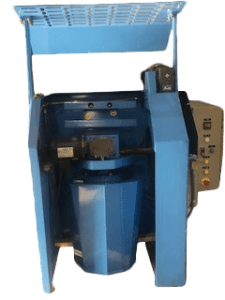

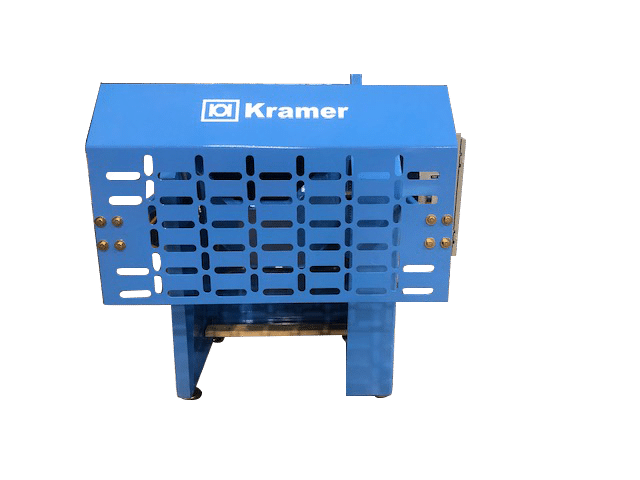

TT Series – Heavy-Duty, Floor Model, Tilting Barrel Tumbler
The TT Series is a specialty line of open-ended, octagonal, oblique barrel tumblers. This heavy duty system allows for quick loading and unloading and can be used wet or dry. The barrel can be fixed in any position to change the tumbling motion and aggressiveness. This unique design is ideal when more control is needed in the tumbling process.
TT Series – Heavy-Duty, Floor Model, Tilting Barrel Tumbler
The TT Series – Heavy-Duty, Floor Model, Tilting Barrel Tumbler is large, floor model, heavy-duty, tilting barrel tumblers designed for both wet and dry applications. This unique open-barrel system allows for tumbling at nearly any angle. This tilting provides complete control over the tumbling action. The wide open end and tilting barrel make for extremely easy loading and unloading.
Benefits
- Easy Loading and Unloading
- Octagonal Barrel for Uniform Tumbling
- Locking Barrel in Any Position
- Wet or Dry Processing
- Open End Allows for Easy Access to Parts
- Oblique Barrel Allows for Tumbling Fragile Parts
- System Capacities From 2.4 ft3 to 9.3 ft3
- Heavy-Duty Construction
- Variable Speed Control (Optional)
- Long Cycle Time Applications
- Manual and Power Tilt Designs
Applications
- Deburring
- Parts drying
- Polishing
- Part-on-Part Tumbling
Typical Uses
- Short Duration Tumbling
- Corn Cob Grit Tumbling to Dry Parts
- Deburring Fragile Parts
- Aggressive Part-on-Part Tumbling
Product Videos
Specifications
TT Series Specifications
TT Series Components & Features |
|
|---|---|
Drive |
|
Controls |
|
Motor |
|
Housing |
|
Barrel |
|
Included
|
|
Optional
|
|
TT Series Model Specifications |
|||
|---|---|---|---|
Model |
TTM-1 | TTM-2 | TTM-3 |
Barrel Volume |
2.38 ft3 | 4.60 ft3 | 9.30 ft3 |
Barrel Diameter(Bottom & Top) |
20" & 12" | 24" & 16" | 30" & 22" |
Barrel Depth |
20" | 25" | 30" |
Steel Bottom of Barrel |
3/16" | 1/4" | 3/16" |
Thickness of Barrel Side |
12-gauge | 3/16" | 1/4" |
Number of
|
8 | 8 | 8 |
Barrel
|
28 | 28 | 28 |
HP |
1/4 | 1/2 | 1 |
Floor Space(Width x Depth) |
34" x 32" | 38" x 37" | 44" x 42" |
Weight |
700 lb | 830 lb | 950 lb |
Additional Information
| Selected Package Gross Weight | 1000 lbs |
|---|
