K Series – Heavy-Duty, Floor Model, Barrel Tumbler
The K Series is designed for heavy-duty use and large loads and parts. Multiple capacity systems allow for a wide variety of applications. A workhorse system engineered to last for decades and provide consistent and continuous performance.
K Series – Heavy-Duty, Floor Model, Barrel Tumbler

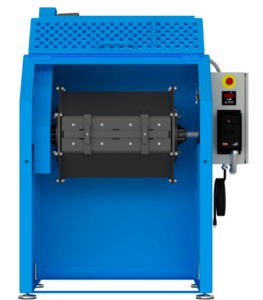

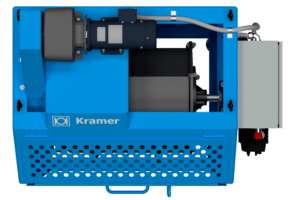

K Series – Heavy-Duty, Floor Model, Barrel Tumbler is large, floor model, heavy-duty barrel tumblers designed for both wet and dry applications. These systems feature variable speed control, heavy duty bearings and chain, and wrap-around housings for safety and stability.

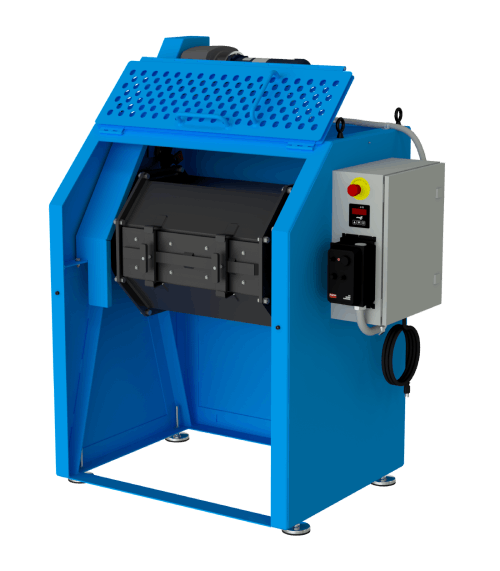

Benefits
- Large Production Runs
- Wet or Dry Processing
- Accommodates Large Parts
- Barrel Capacities From 4.8 ft3 to 25.9 ft3
- Heavy-Duty Construction
- Variable Speed Control
- Long Cycle Time Applications
- Customizable for Specific Applications
- Upgradable For Extremely Heavy Loads

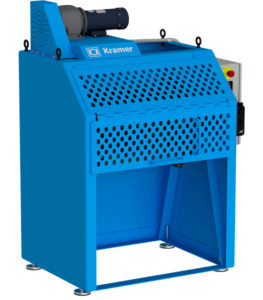

Applications
- Heavy and Light Deburring
- Slag and Heavy Burr Removal
- Polishing
- Burnishing
- Cleaning and Rust Removal
- Scale Removal

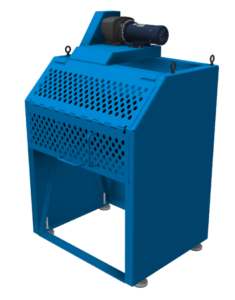

Typical Uses
- Large Batch Production Runs
- Heavy Loads
- Steel Media Burnishing
- Tumbling Large Parts

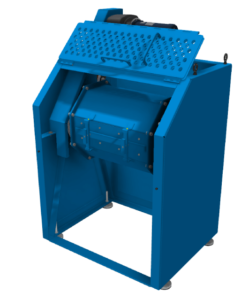

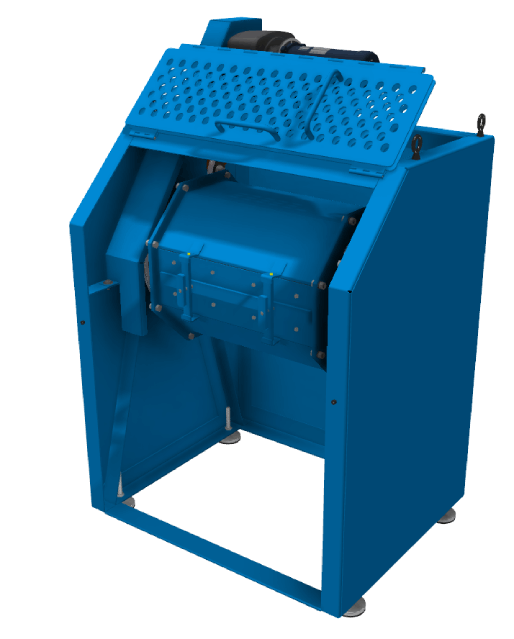

Specifications
K Series Specifications
K Series Components & Features |
|
|---|---|
Barrels |
|
Drive |
|
Controls |
|
Motor |
|
Housing |
|
Optional
|
|
K Series Model Specifications |
||||
|---|---|---|---|---|
Model |
Capacity |
Compartments |
HP |
Floor Space(Depth x Width x Height) |
| K2024-1 | 4.80 ft3 | One 24" | 3/4 | 32" x 58" x 50" |
| K2024-2 | 4.80 ft3 | Two 12" | 3/4 | 32" x 58" x 50" |
| K3036-1 | 15.54 ft3 | One 36" | 2 | 42" x 73" x 60" |

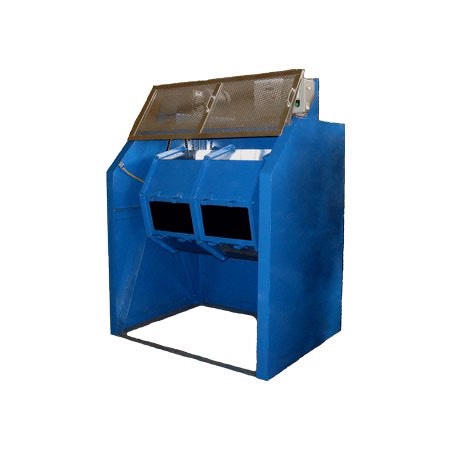

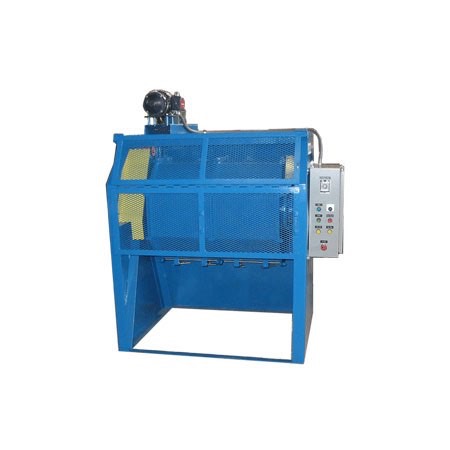

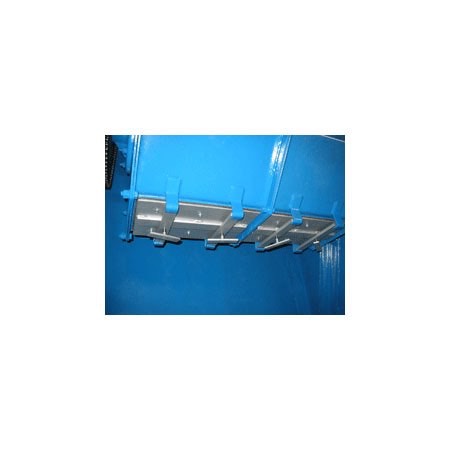

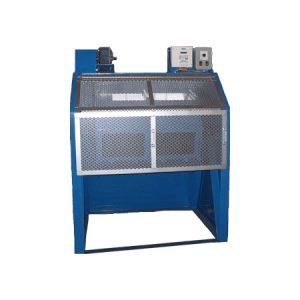

| K3036-2 | 15.54 ft3 | Two 18" | 2 | 42" x 73" x 60" |

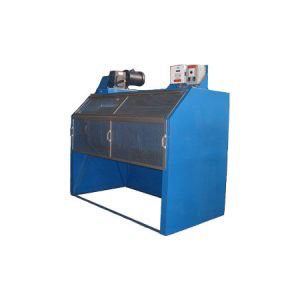

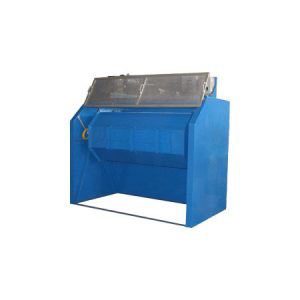

| K3060-1 | 25.92 ft3 | One 60" | 5 | 42" x 99" x 60" |
| K3060-2 | 25.92 ft3 | Two 30" | 5 | 42" x 99" x 60" |
| K3060-3 | 25.92 ft3 | Two 18" and One 24" | 5 | 42" x 99" x 60" |
| K3060-4 | 25.92 ft3 | Four 15" | 5 | 42" x 99" x 60" |
Additional Information
| Selected Package Gross Weight | 1000 lbs |
|---|
