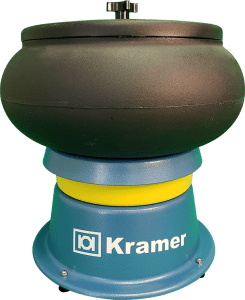

MB Series – Heavy-Duty Grade, Mini-Bowl Style, Vibratory Tumbler
The MB Series is ideal for shorter cycle times and small batch runs. Economical and durable, the MB Series are great ‘starter’ systems for those looking to get into mass finishing or need a unit for scale-up testing. Some systems can be upgraded for use with steel tumbling media.
MB Series – Heavy-Duty Grade, Mini-Bowl Style, Vibratory Tumbler
The MB Series – Heavy-Duty Grade, Mini-Bowl Style, Vibratory Tumbler is our most popular vibratory tumbler and is designed industrial applications and everyday use. These economical vibratory tumblers are great ‘starter’ systems and for those unfamiliar with mass finishing. These systems are a great addition to any shop as they can be used for small batch sizes. The smaller bowls protect the part during tumbling for small and delicate parts.
The E Class are economical systems ideal for smaller parts and batch sizes. The F Class are larger, heavier duty tumblers ideal for slightly larger batch sizes.
Benefits
- Economical and Easy to Use
- Wet or Dry Processing
- Heavy-Gauge Steel for Durability
- Amplitude Adjustment for Better Tumbling Control
- Durable HDPE Bowls (E Class)
- Compact, Small Footprint
- Compound Recirculating System Available (E Class)
- Short & Long Cycle Time Applications
- Bowl-Style Allows for 3-Dimensional Tumbling to Minimize Part-to-Part Interaction
Applications
- Deburring
- Polishing
- Burnishing
- Cleaning and Rust Removal
- Scale Removal
Typical Uses
- Small Batch Production Runs
- Cellular Manufacturing
- Quick Parts Testing
- Scale-Up Production
Specifications
MB Series Specifications
G-Class - MB Series Model Specifications |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Bowl |
|
||||||||||
 |
|||||||||||
Model |
Bowl Dimensions |
Max Load Weight |
HP |
Bowl Capacity |
Bowl Diameter |
Overall
|
Floor Space |
Weight |
|||
A |
B |
C |
|||||||||
|
G- 100
|
10" | 3 1/4" | 7 1/4" | 10 lb | 1/8 | 3 qt / 0.1 ft3 | 10" | 13" | 8-1/2” x 8-1/2” | 9 lb | |
|
G- 330
|
15" | 5 1/2" | 53/4" | 35 lb | 1/5 | 10 qt / 0.33 ft3 | 15" | 171/2" | 16” x 16” | 25 lb | |
|
G- 660
|
17" | 6 1/2" | 61/2" | 50 lb | 1/5 | 20 qt / 0.66 ft3 | 17" | 191/2" | 16” x 16” | 28 lb | |
|
G- 1300
|
211/2" | 7" | 81/2" | 150 lb | 1/2 | 1.3 ft3 | 24" | 40" | 195 lb | ||
Drive |
|
||||||||||
Housing & Bowls |
|
||||||||||
Features |
|
||||||||||
Optional Accessories |
Models G-330 and G-660
Models G-1300
|
||||||||||
E-Class - MB Series Model Specifications |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
Bowl |
|
||||||||
|
|||||||||
Model |
Bowl Dimensions |
Capacity |
HP |
Dump Chute |
Weight |
Overall
|
|||
A |
B |
C |
|||||||
|
E25
|
141/2" | 4" | 61/2" | 0.25 ft³/ 2 gal |
1/3 | 2" | 40 lb | 191/2" | |
|
E50
|
171/4" | 6" | 71/2" | 0.50 ft³/ 4 gal |
1/2 | 21/2" | 61 lb | 261/2" | |
|
E75
|
191/2" | 7" | 91/2" | 0.75 ft³/ 6 gal |
1/2 | 3" | 81 lb | 29" | |
Drive |
|
||||||||
Housing & Bowls |
|
||||||||
Features |
Standard E Class Features:
|
||||||||
Optional Accessories |
|
||||||||
Additional Information
| Selected Package Gross Weight | 1000 lbs |
|---|

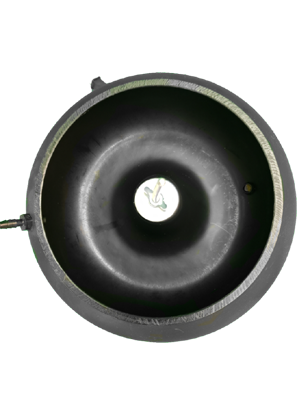

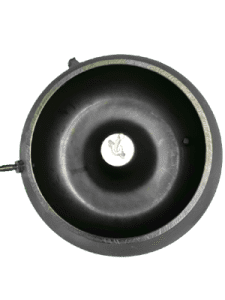

G100 Bowl

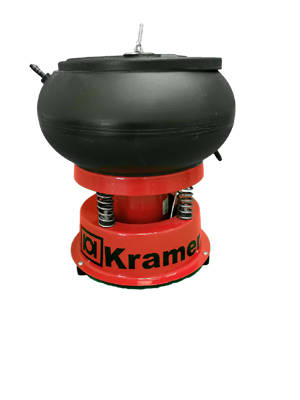

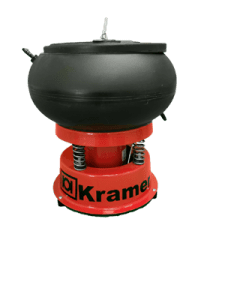

G100 Front

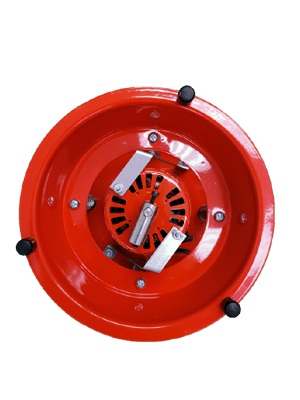

G100 Motor

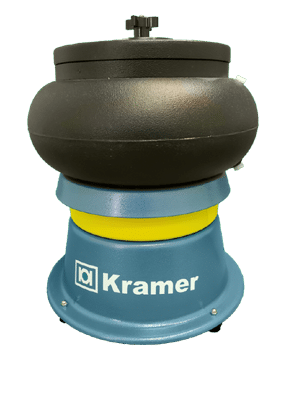

G 330 Front

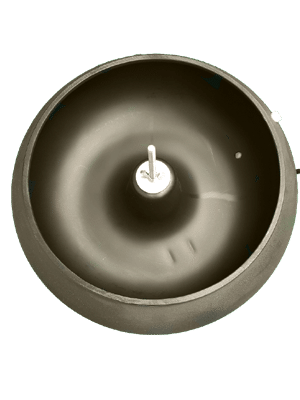

G 660 Bowl

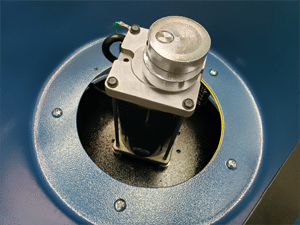

G 660 Motor
G 660
E75 With Complete Optional Recirculating System with Stand and Timer
E75
E50
E25

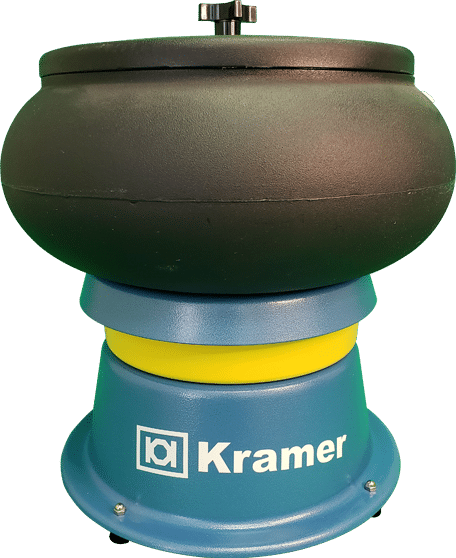

G-660 Front

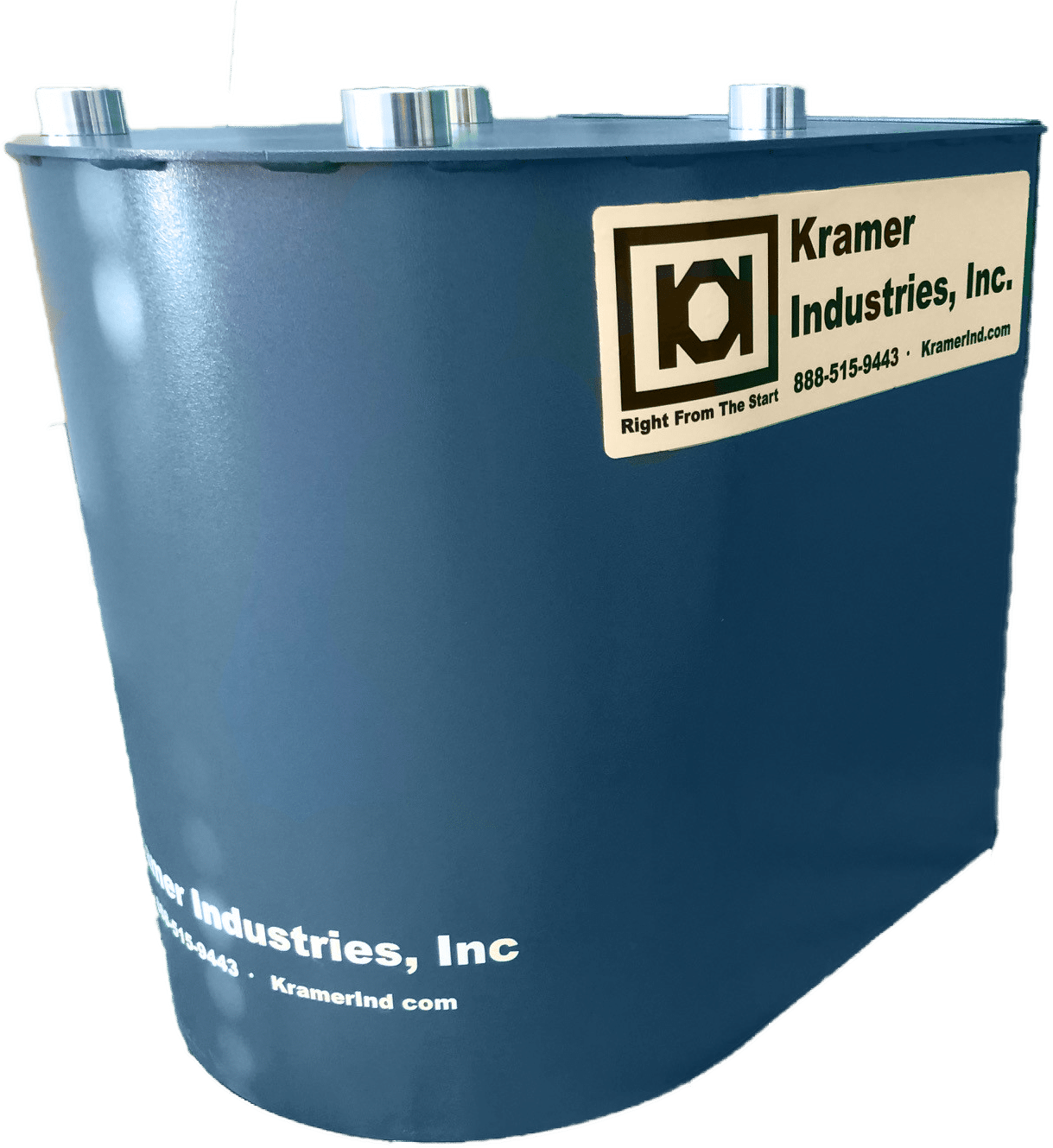

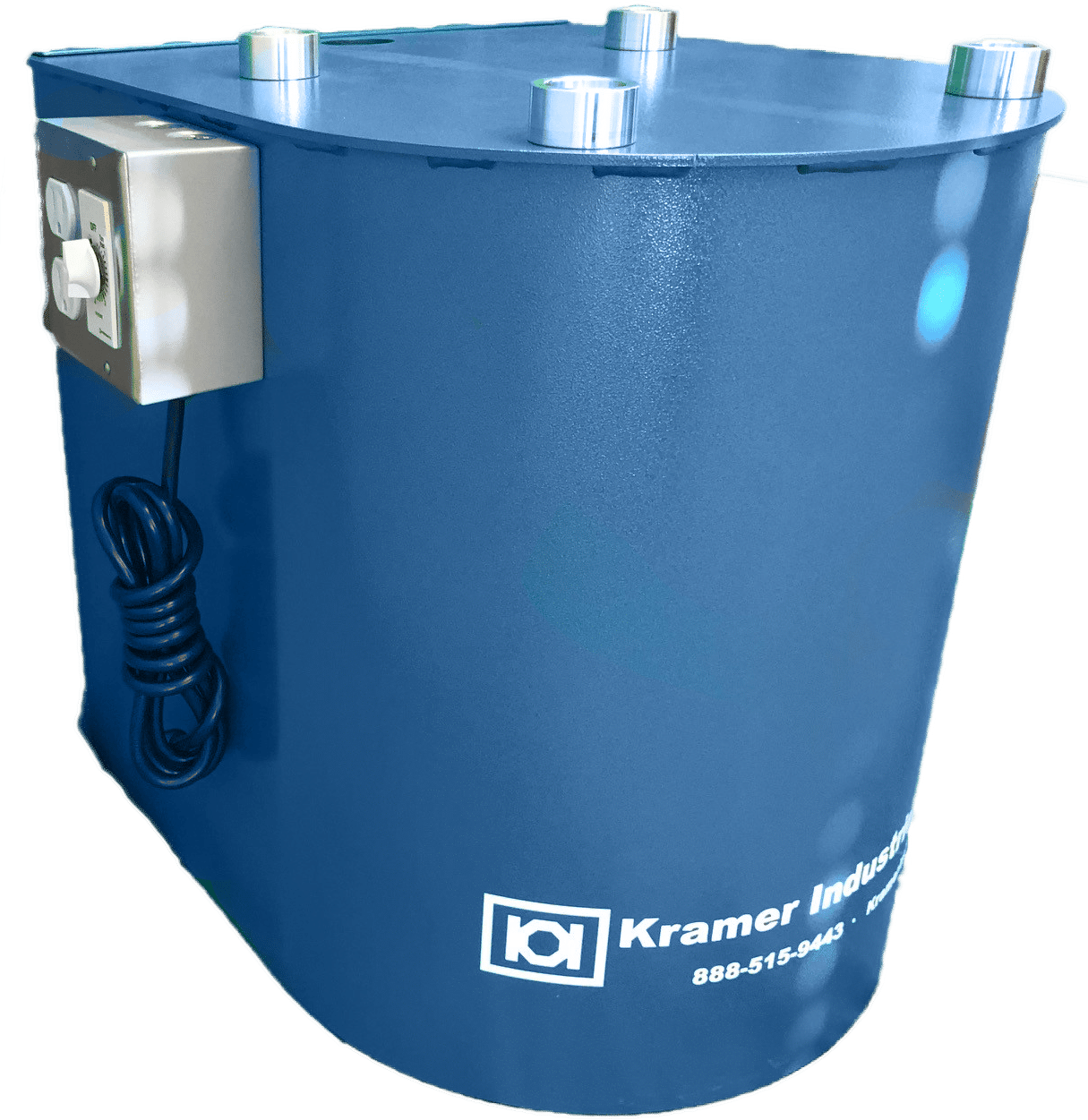

StandPak 5000
StandPak 5000

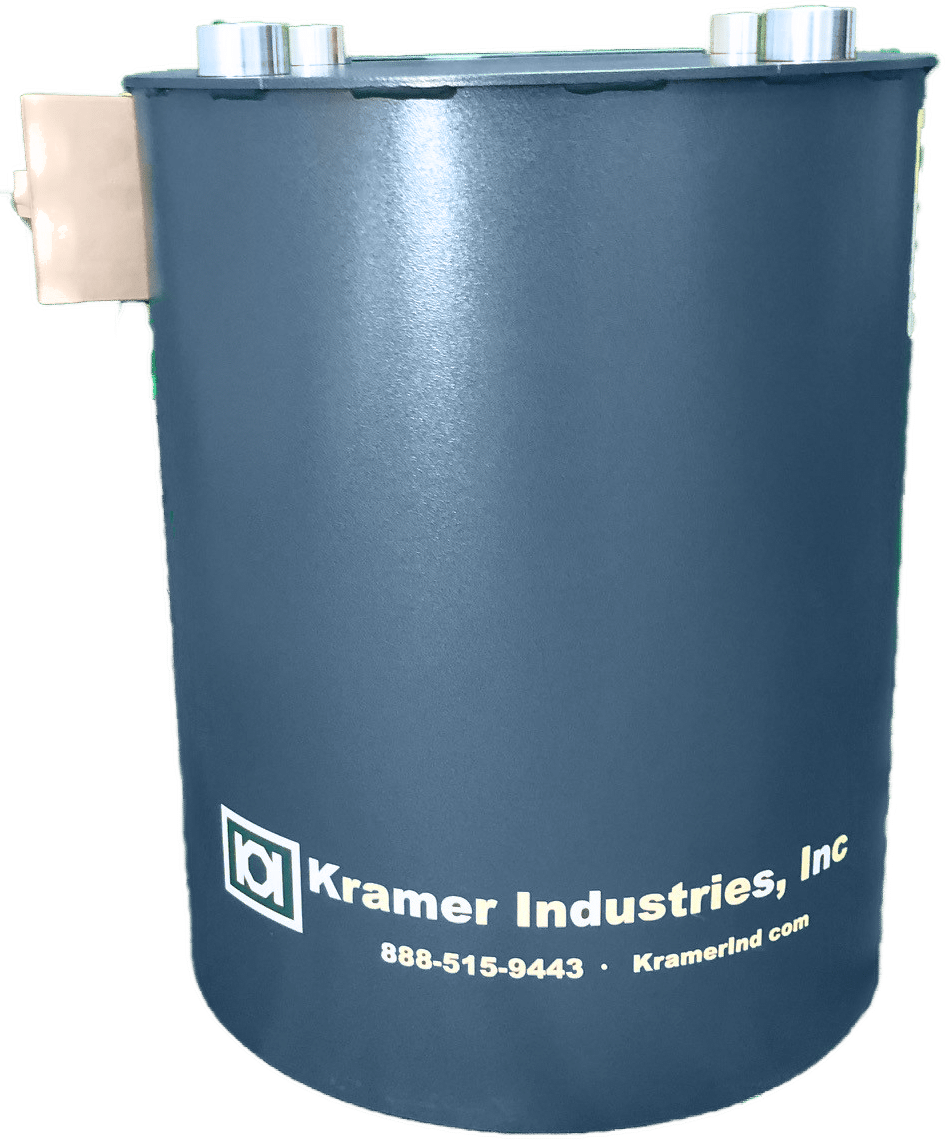

StandPak 5000 Front

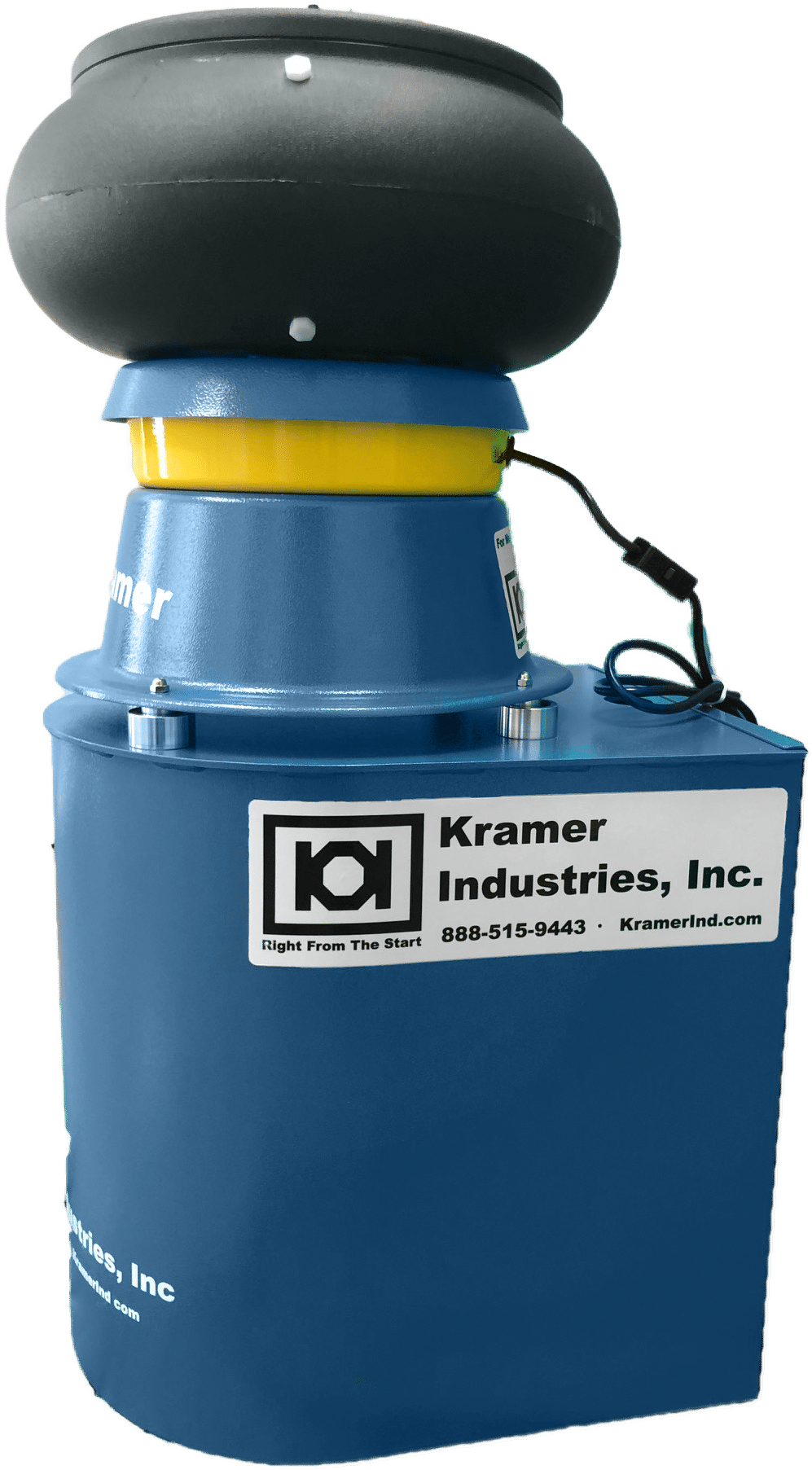

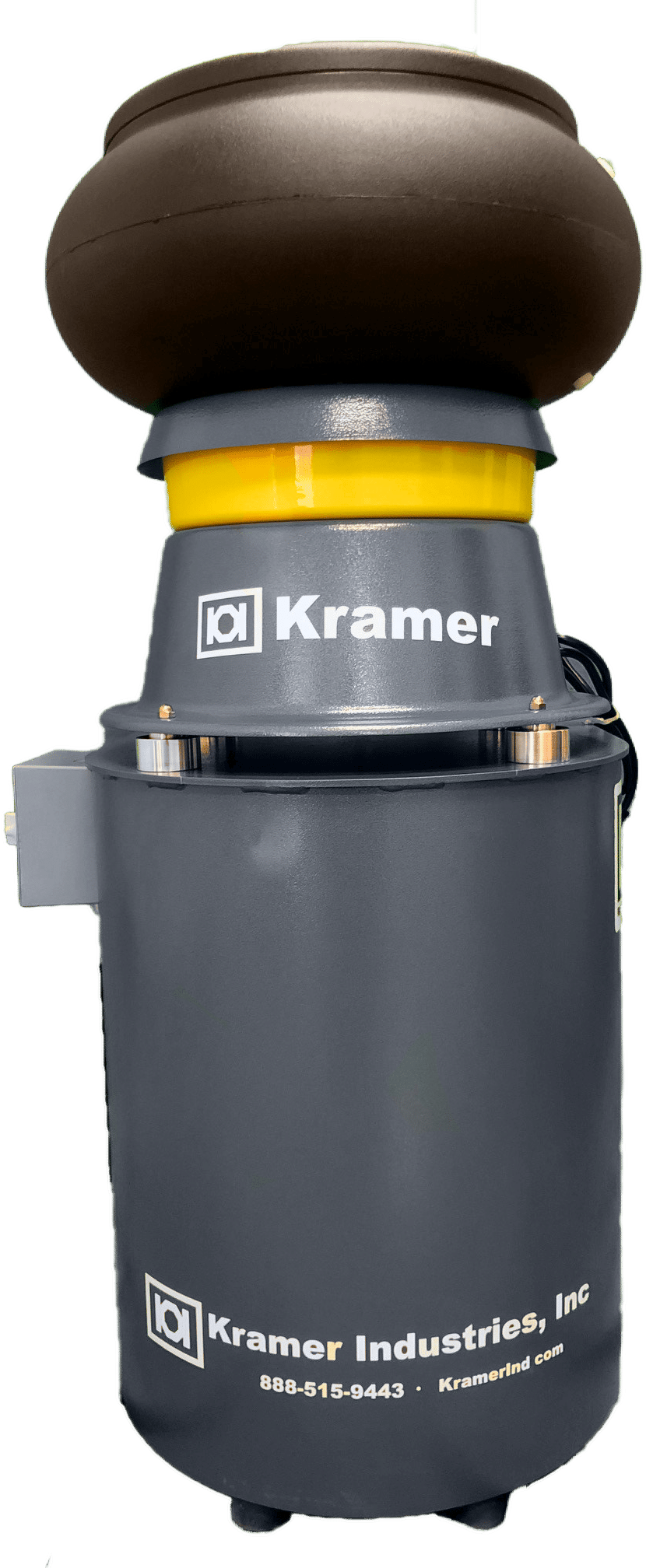

G-660

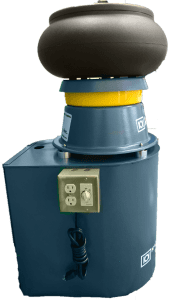

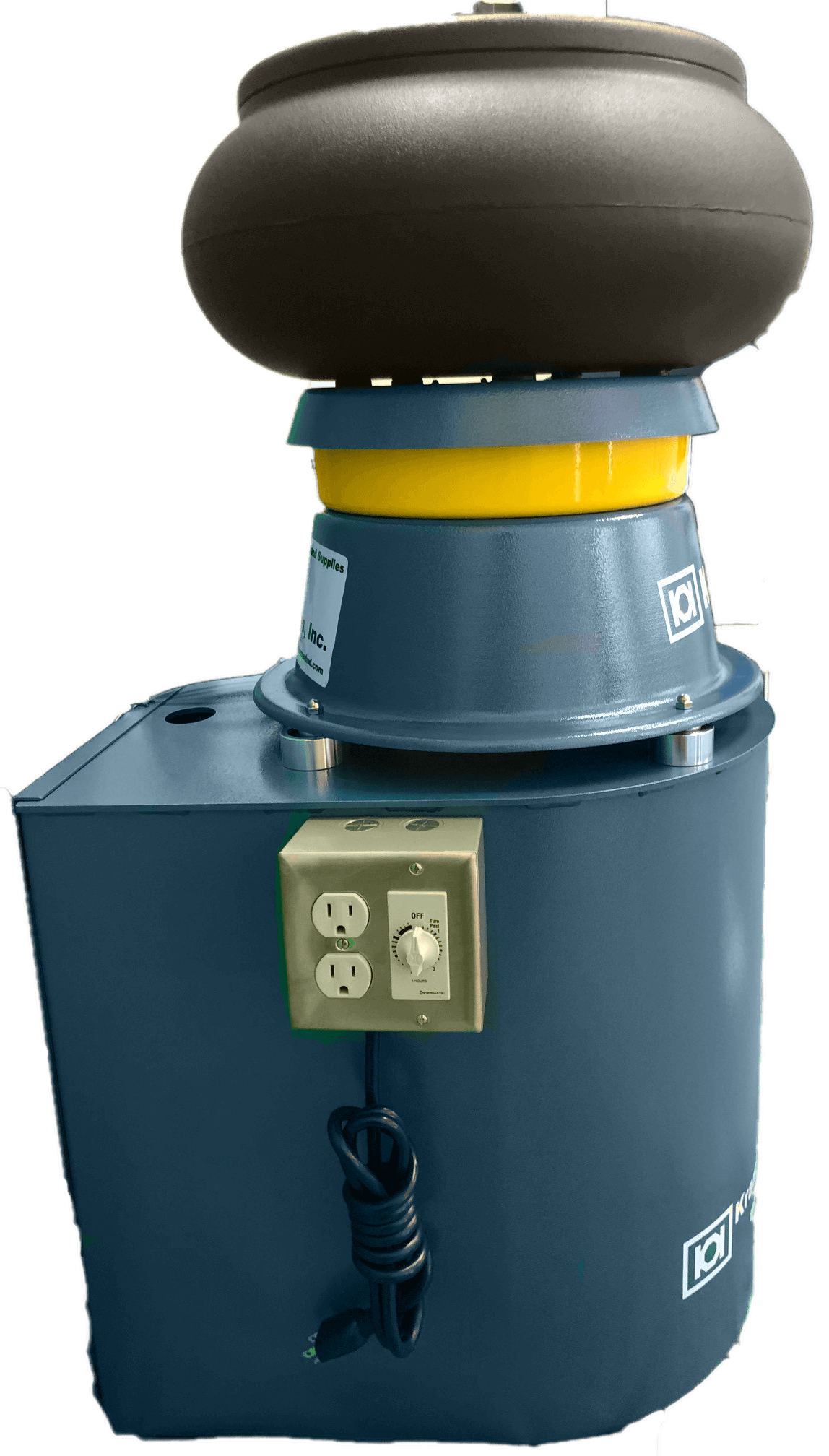

G-660 Left
G-660
E-stand-timer-large
e-stand-large

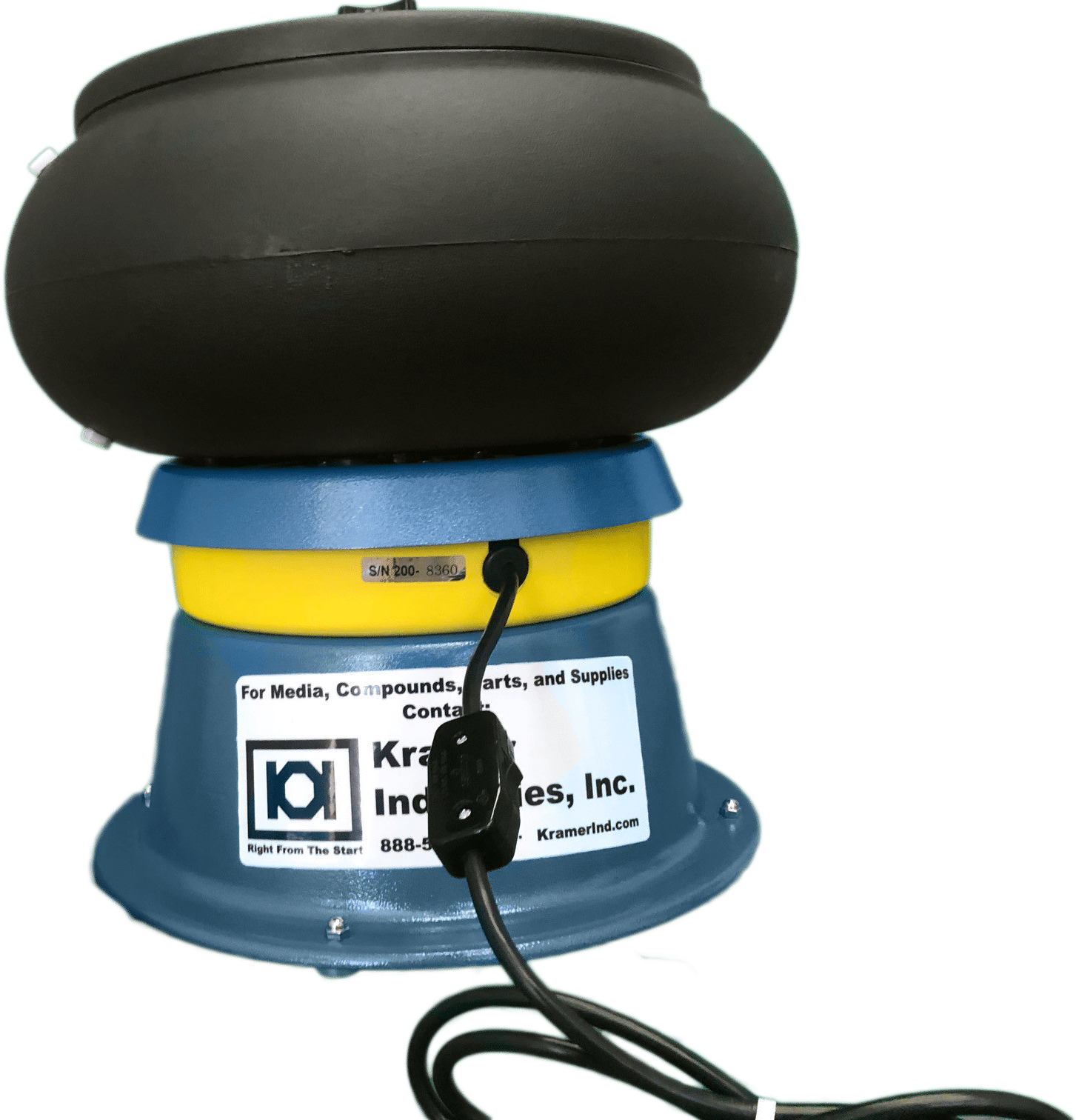

G-660 Back

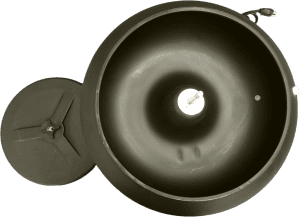

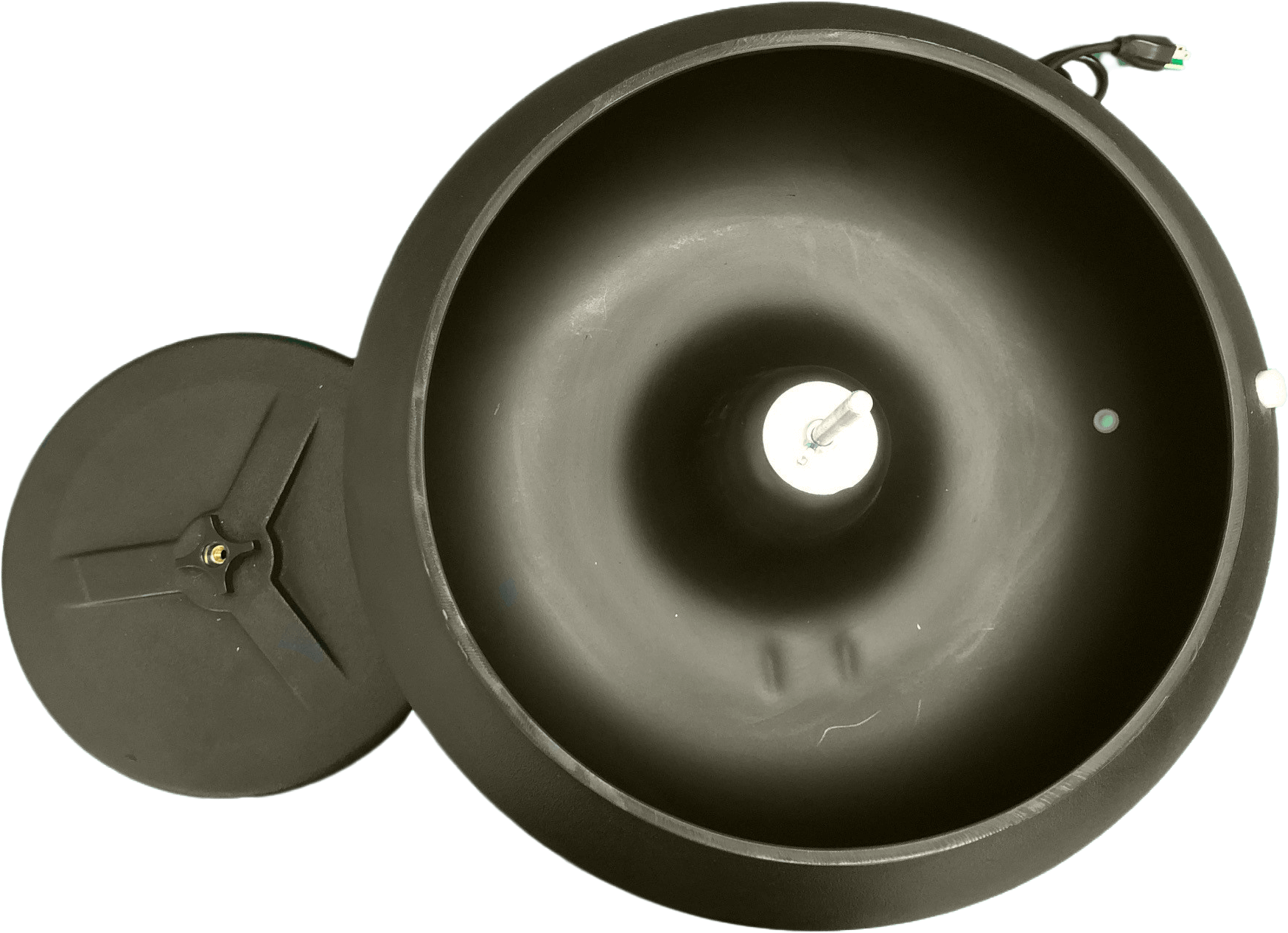

G-660 Top
Related Products
-
Premium Ceramic Tumbling Media
$34.95 – $708.95Premium Ceramic Tumbling Media is designed for specific applications where precision deburring and polishing is required. The smaller sizes are ideal for intricate finishing jobs. Perfect for deburring and polishing in tight areas and smaller parts.
-

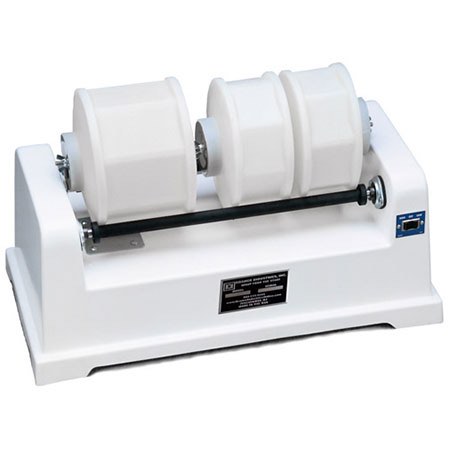

MT Series – Industrial Grade, Roller Barrel, Table-Top Model, Mini-Barr
$849.00The MT Series is ideal for hobbyist, small shops, and R&D facilities. The ability to use multiple barrel sizes on the same roller base provides ease-of-use and versatility for a wide variety of applications. The water-tight barrels can used either wet or dry and for polishing or deburring processes.
-

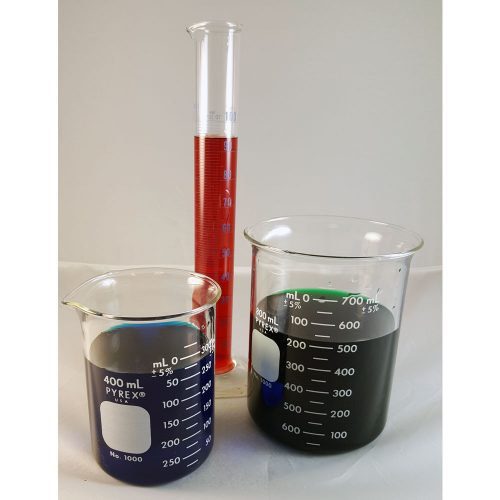

Liquid Finishing Compounds
