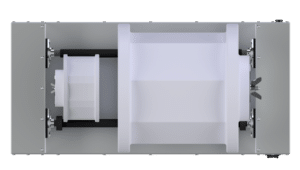

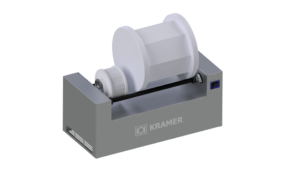

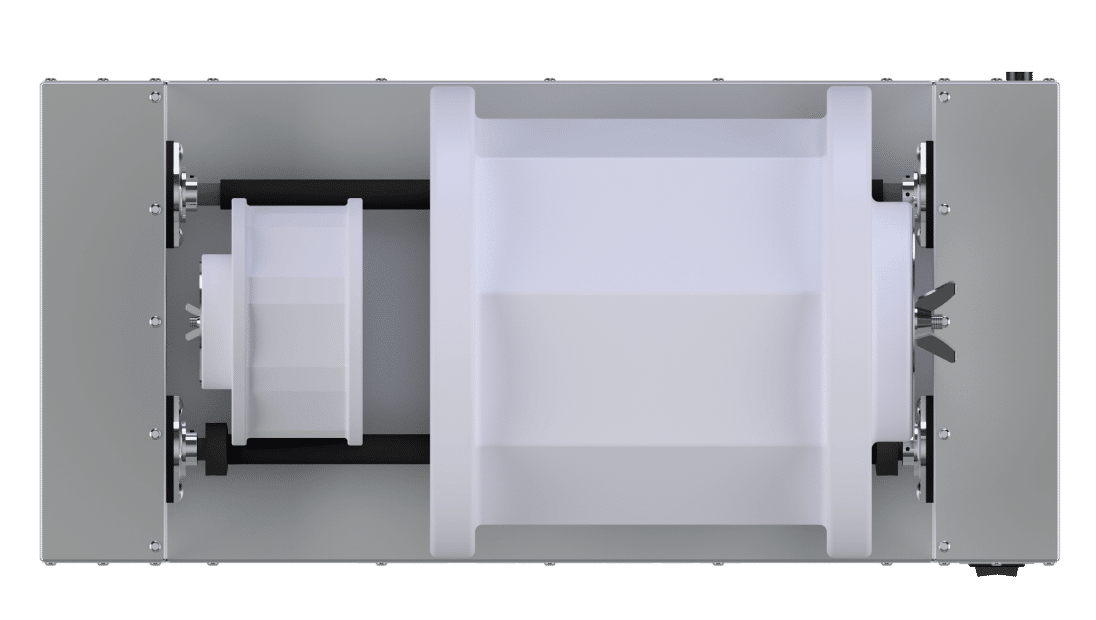

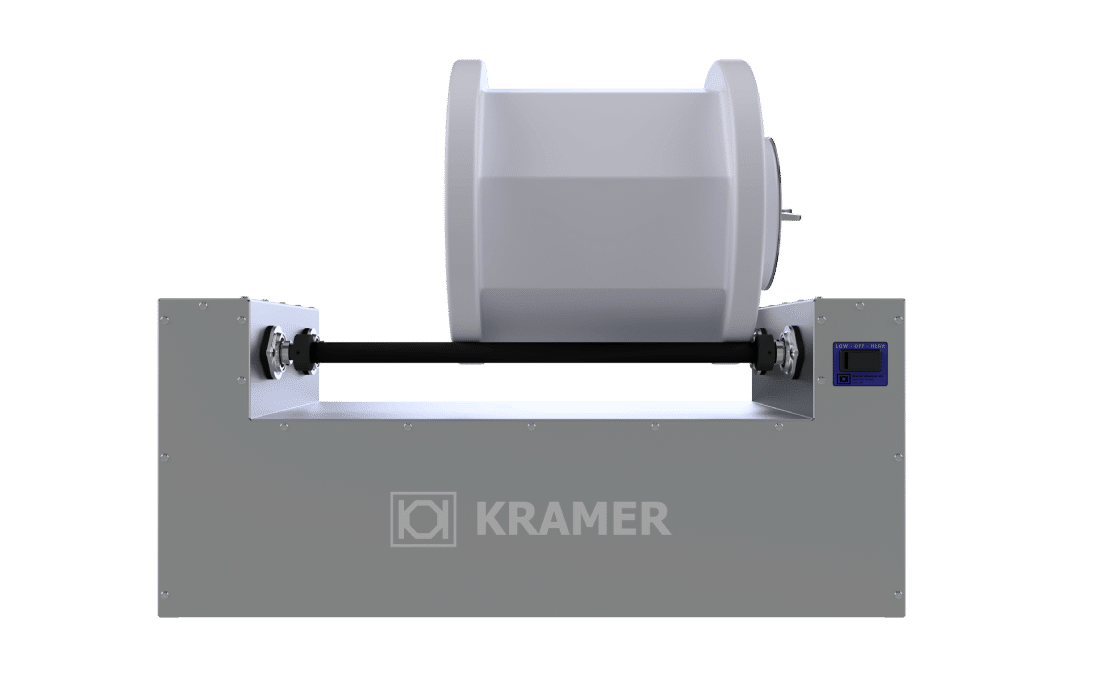

MT Series – Industrial Grade, Roller Barrel, Table-Top Model, Mini-Barrel Tumbler
The MT Series is ideal for hobbyist, small shops, and R&D facilities. The ability to use multiple barrel sizes on the same roller base provides ease-of-use and versatility for a wide variety of applications. The water-tight barrels can used either wet or dry and for polishing or deburring processes.
MT Series – Industrial Grade, Roller Barrel, Table-Top Model, Mini-Barrel Tumbler
The MT Series – Industrial Grade, Roller Barrel, Table-Top Model, Mini-Barrel Tumbler Series is perfect for small batch sizes and/or small part sizes. The Roller Barrel Tumbler is available with multiple sized barrels that can all be used on the same roller base. With the optional variable speed drive, this system is ideal for sensitive and fragile parts.
Benefits
- Multiple Barrel Sizes
- Wet or Dry Processing
- Quick Loading and Unloading
- Barrel Capacities From 22 oz to 8 gal
- Compact, Small Footprint
- Lightweight and Easy-To-Use
- Variable Speed Control (Optional)
- Short & Long Cycle Time Applications
Applications
- Deburring
- Polishing
- Burnishing
- Cleaning and Rust Removal
- Scale Removal
Typical Uses
- Lab Testing and R&D Environments
- Small Batch Production Runs
- Scale-Up Production
MT Series Specifications
MT Series BaseComponents & Features |
||
---|---|---|
Model |

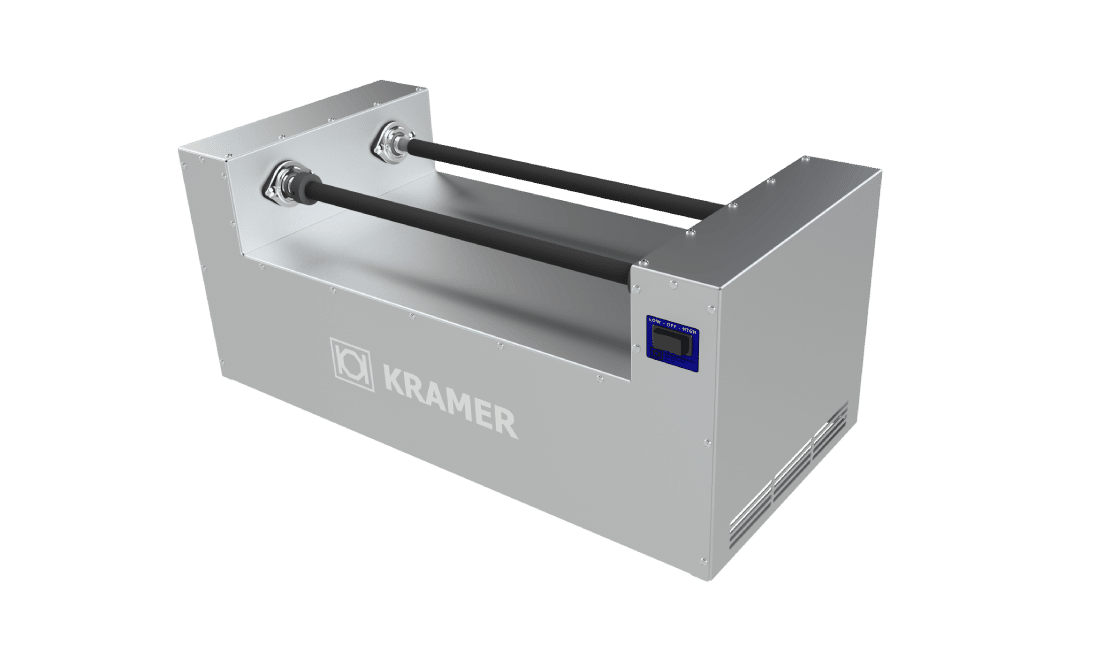

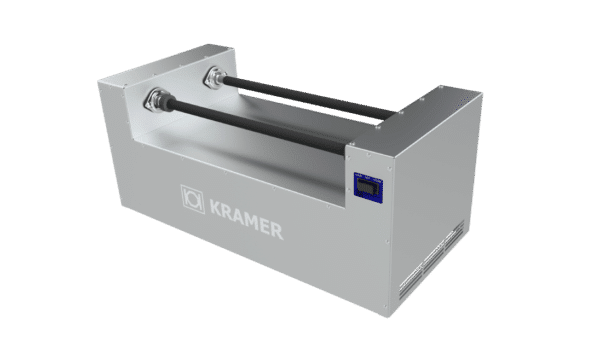

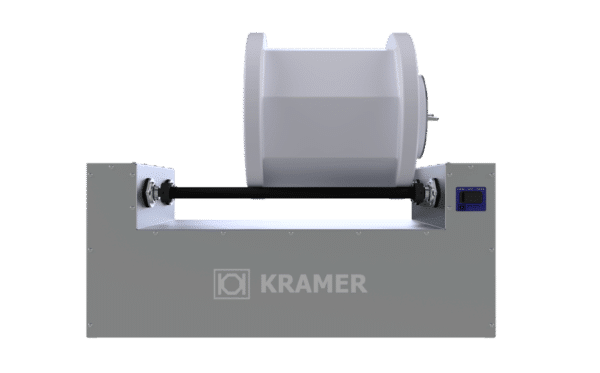

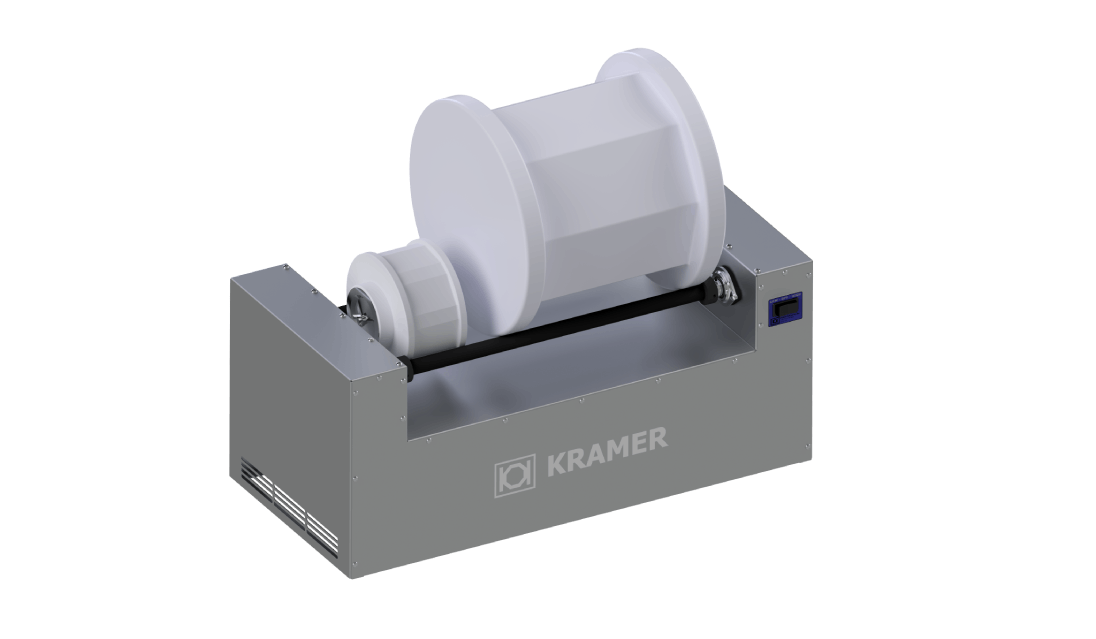

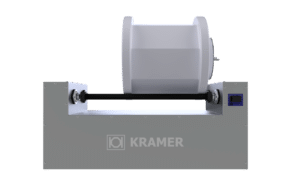

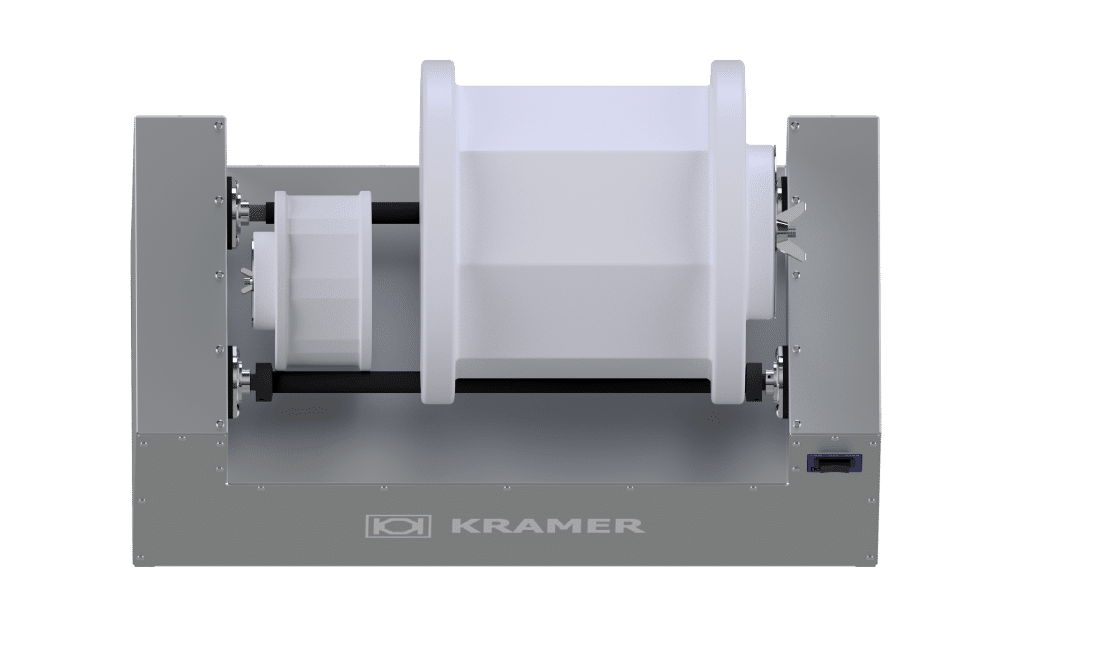

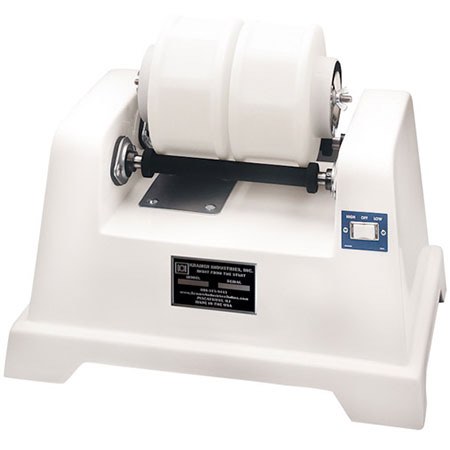

Mini-Base | HT-2B 2-Bar Base |
Dimensions(L x W x H) |
23″ x 16″ x 13″ | 34″ x 16″ x 14-1/2″ |
Bar Length |
91/4“ | 24″ |
Bar Distance |
41/2“ | 81/2“ |
Electrical |
|
|
Options |
|
|
Features |
|
|

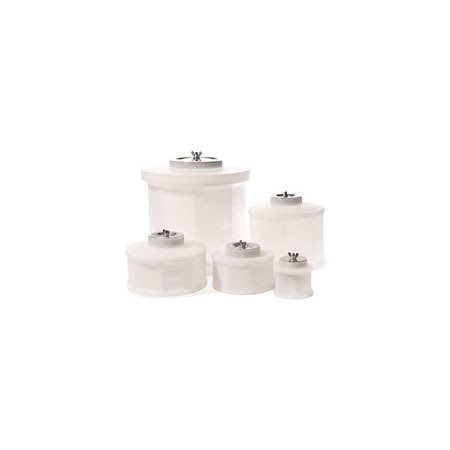

MT Series BarrelComponents & Features |
||||||
---|---|---|---|---|---|---|
Model |
MT-1 | MT-2 | MT-3 | MT-4 | MT-6 | MDT-1 |
Dimensions(Diameter x Height) |
43/4” x 43/4“ | 81/4” x 43/8“ | 10″ x 7″ | 103/4” x 101/2“ | 153/4” x 143/4“ | 5″ x 41/2“ |
Barrel Opening |
3″ | 4″ | 4″ | 4″ | 71/4“ | 3″ |
Total Capacity |
22 fl oz | 3.5 qts | 1.5 gals | 2.5 gals | 8 gals | 22 fl oz |
RPM(Low/High) |
90/127 | 52/80 | 42/56 | 38/53 | 25/40 | 1/120 |
Ceramic Media Needed to Fill Each Barrel |
1 lb | 5 lbs | 10 lbs | 20 lbs | 65 lbs | 1 lb |
Features |
|
|||||
Maximum Number of Barrels That Fit on Base |
||||||
Mini-Base |
2 | 2 | 1 | 1 | 0 | 2 |
HT-2B 2-Bar Base |
0 | 4 | 3 | 2 | 1 | 0 |
